51 16 340 Removing and installing/replacing lock for right glovebox

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open glovebox.

Release screws (1).

Remove lower section of lock for right glovebox (3).

Remove upper section of lock for right glovebox (2).

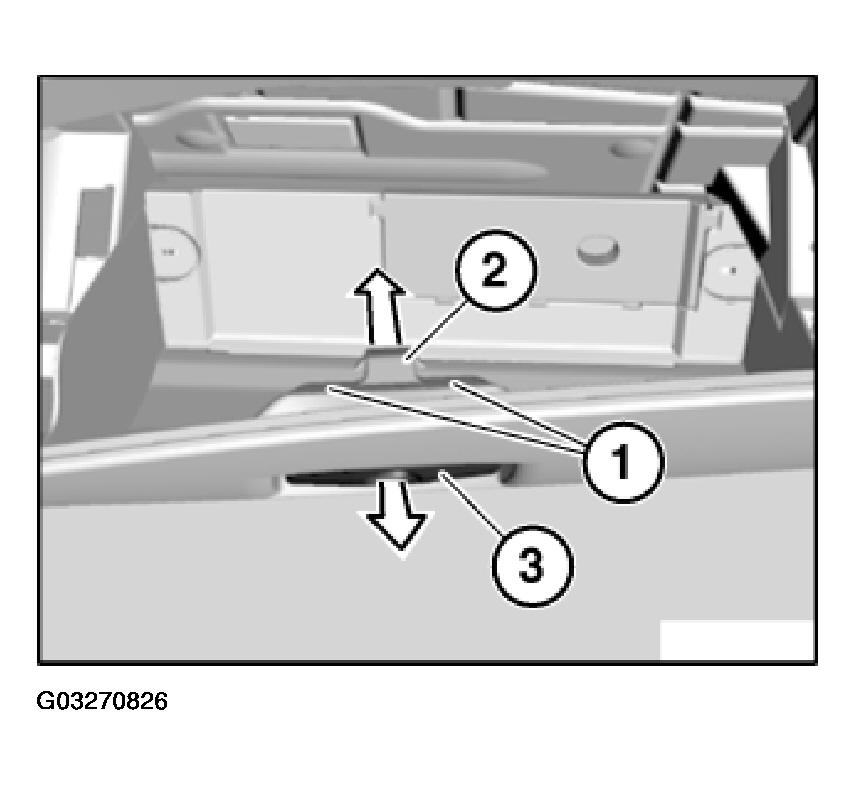

Fig 1: Removing Lower And Upper Section Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Insert ignition key (1) in lock cylinder (3).

Turn ignition key (1) slightly and pull out lock cylinder (3) with ignition key (1) in direction of arrow.

If necessary, force catches (2) open.

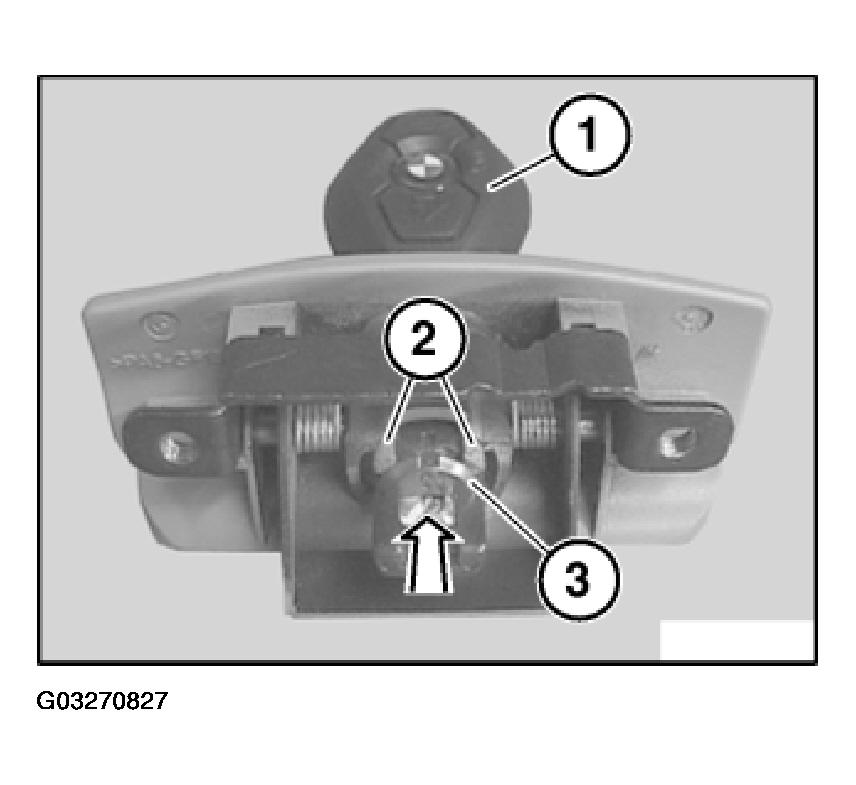

Fig 2: Inserting Ignition Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
