51 16 325 Removing and installing/replacing fastener for center armrest

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove storage compartment. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

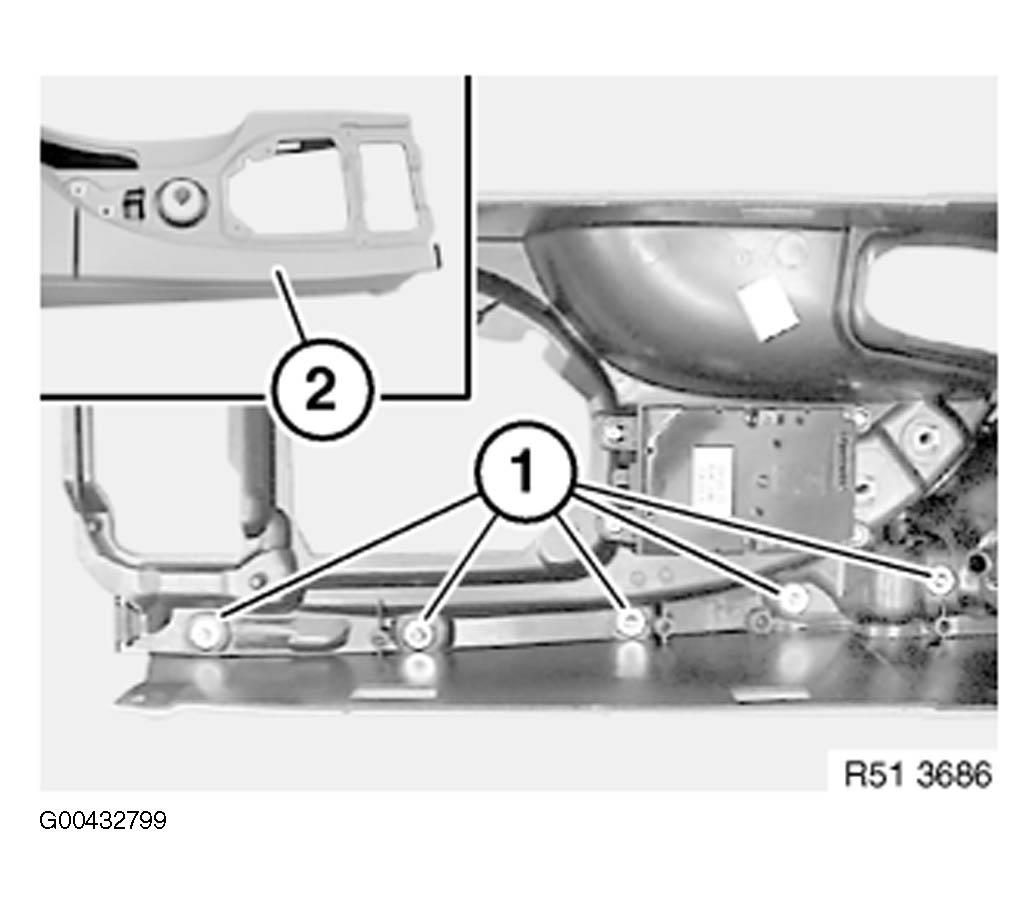

Release screws (1) on inside of storage compartment and remove trim (2).

Fig 1: Locating Retaining Screws Inside Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

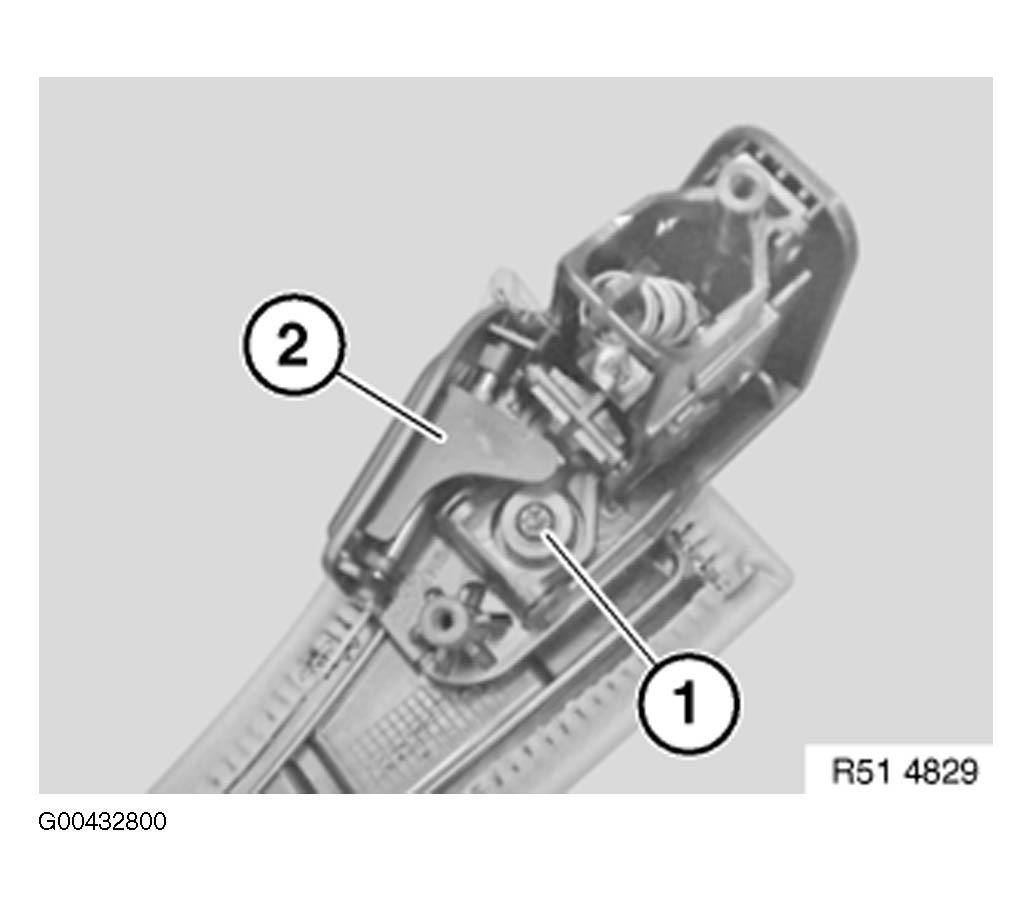

Release screw (1) and remove fastener (2).

Fig 2: Identifying Center Armrest Fastener

Courtesy of BMW OF NORTH AMERICA, INC.
