51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Fold down sun visor (5).

Lever out trim (2) on counter support (1) and release screw underneath.

Lever out cover (4) on joint and release screw (3).

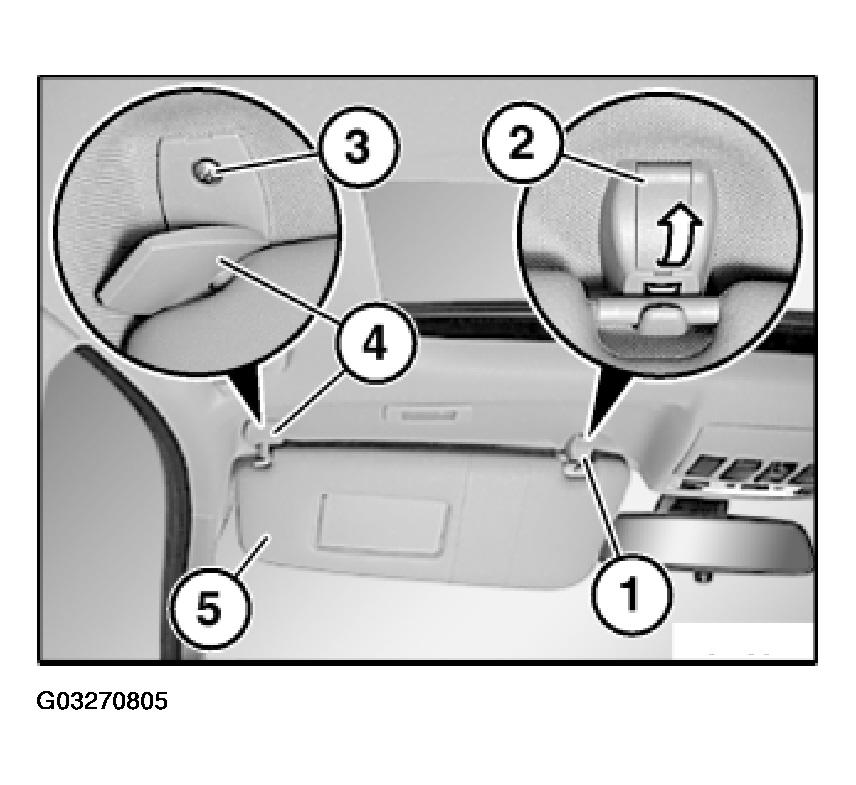

Fig 1: Locating Sun Visor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out sun visor.

Pull out cable slightly and disconnect plug (3).

Installation:

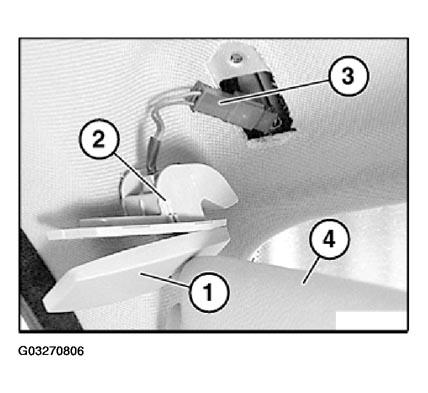

Fig 2: View Of Sun Visor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Cover (2) or trim (1) must not be damaged.

Perform function check on lighting.
