51 16 045 Removing and installing/replacing retaining ring on left or right door mirror

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

Necessary Preliminary Tasks:

Remove housing on door mirror. Refer to 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING ON LEFT OR RIGHT DOOR MIRROR .
Remove drive for electrically adjustable door mirror. Refer to 67 13 001 REPLACING DRIVE UNIT FOR ELECTRICALLY OPERATED LEFT OR RIGHT DOOR MIRROR .

NOTE: Version with door mirror light: Disconnect plug connection (1).

Release screws (2) and remove complete retaining ring on door mirror (3) from carrier (4).

Installation:

Version with door mirror light:

Ensure correct cable routing.

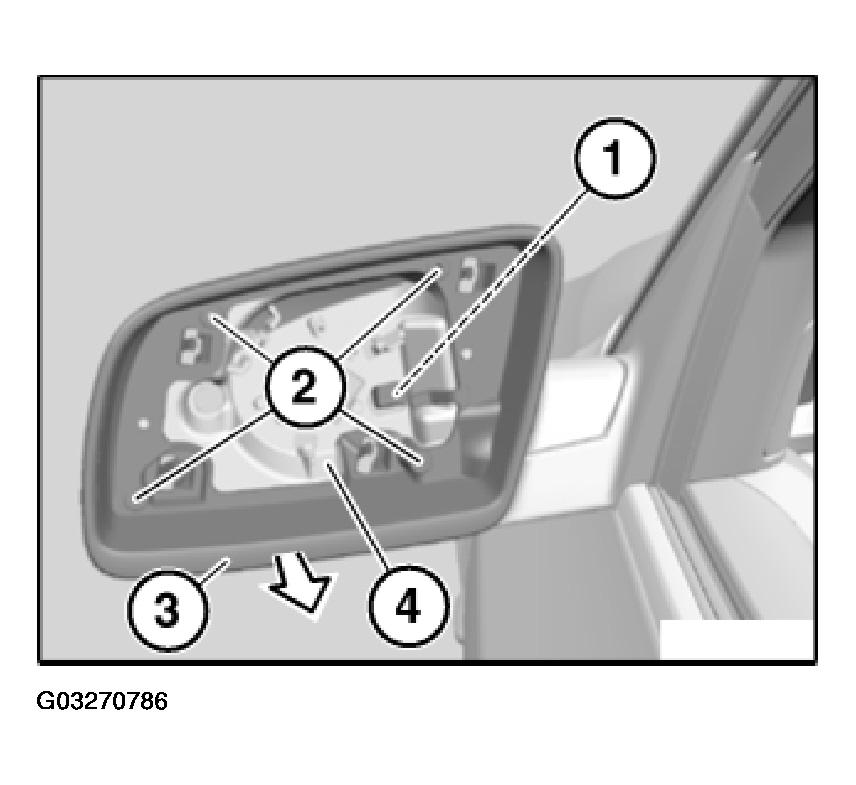

Fig 1: Locating Door Mirror Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip retaining ring on door mirror (1) with special tool 64 1 020 all round and remove from retaining plate (2).

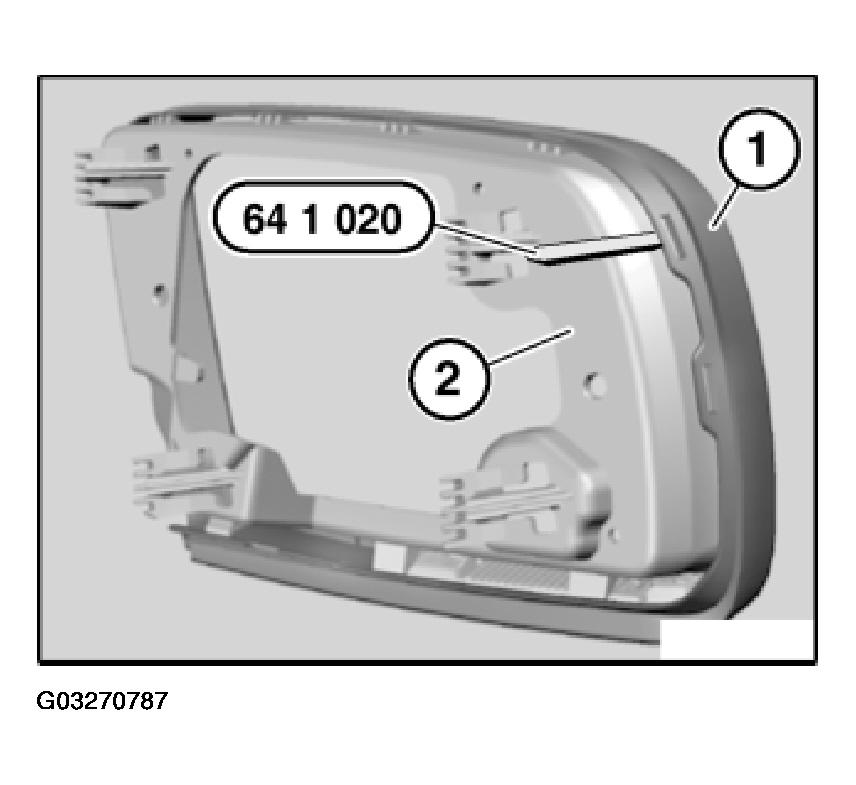

Fig 2: Identifying Retaining Ring On Door Mirror

Courtesy of BMW OF NORTH AMERICA, INC.
