51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Partially lever out cover on inner door window frame in area at front.

Disconnect plug connection (1).

Unlock plug connections (2) and disconnect from control unit (3).

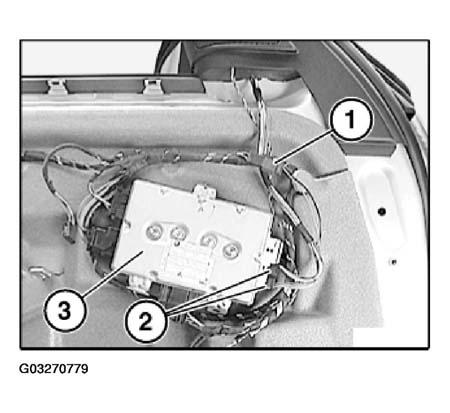

Fig 1: Locating Mirror Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press cover (1) to one side.

Press rubber grommet (2) outwards.

Release screws (3) and feed out mirror (4) with cable.

Installation:

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Replacement only:

Due to the thread-tapping screws, the tightening torque, refer to of the new mirror is increased by 2 N.m.

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

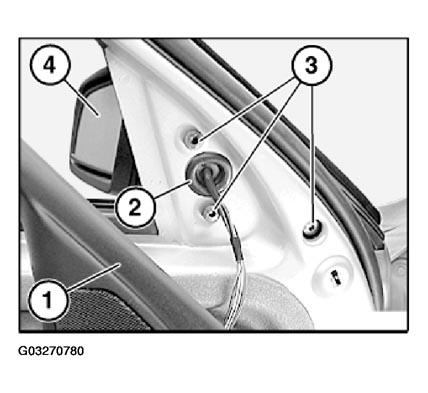

Fig 2: Pressing Rubber Grommet Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

Seal on mirror base plate.
Sound insulation in front door.

Carry out function check.
