51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach wheel arch cover from front/rear side member cover. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER and 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

Release screws (1).

Fig 1: Locating Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear panel (1) from holder (3).

Unclip panel (1) at holders (2) and remove in direction of arrow.

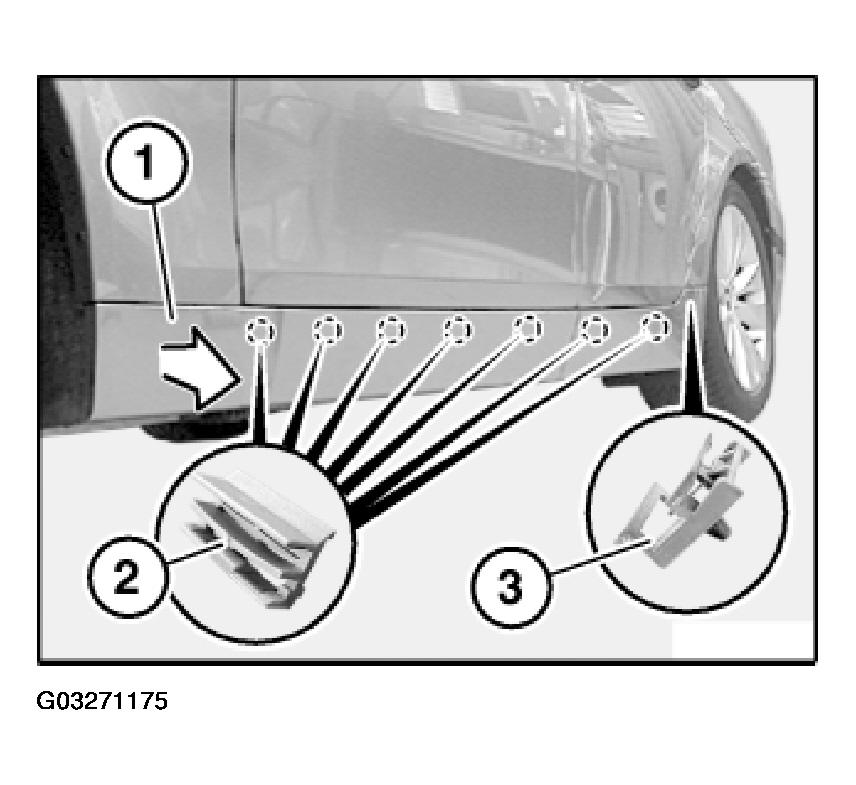

Fig 2: Identifying Rear Panel Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged.

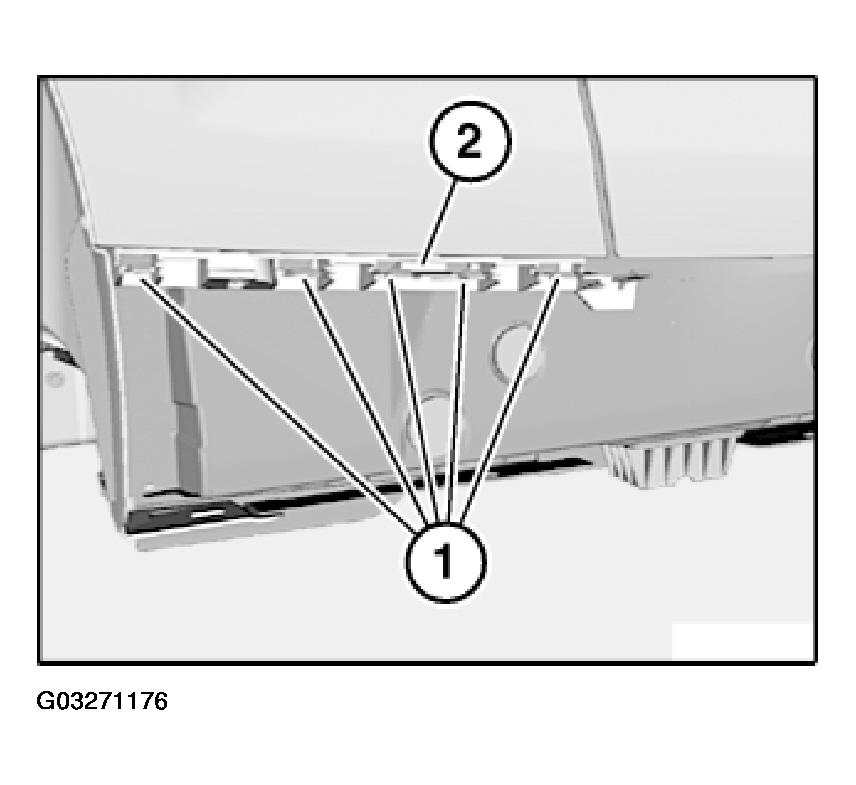

Fig 3: View Of Catches On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach holders (1 and 3) from body and fit on panel (2).

If necessary, replace faulty holders (1 and 3).

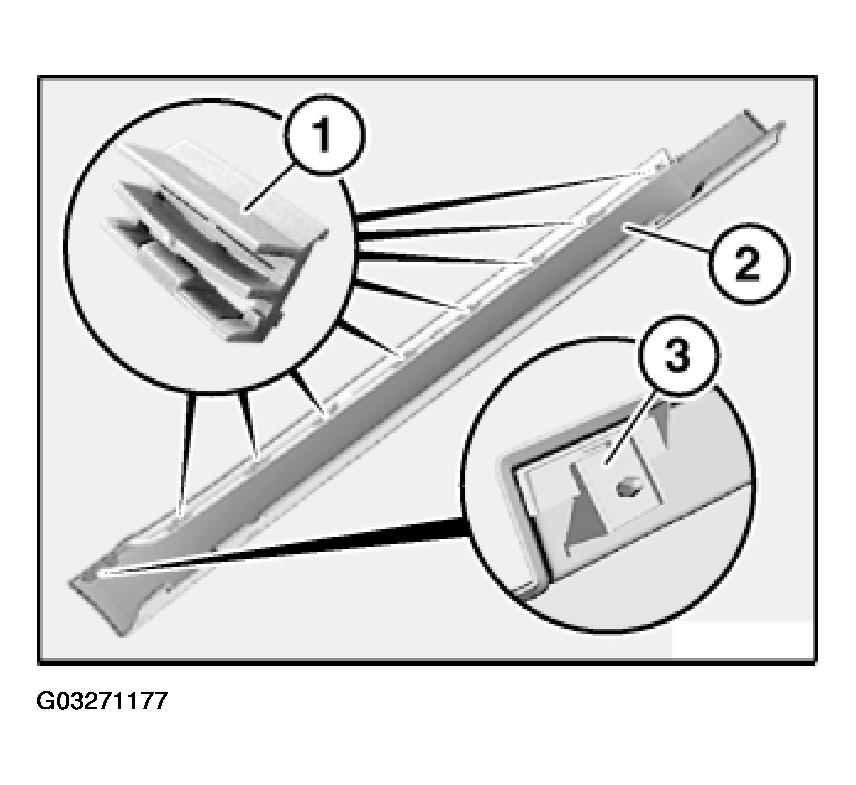

Fig 4: Identifying Holders On Panel

Courtesy of BMW OF NORTH AMERICA, INC.
