51 45 115 Removing and installing speaker frame on panel for instrument panel at top

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 341

Carefully unclip speaker frame (1) with special tool 00 9 341.

Unlock and disconnect plug connection on solar sensor (2). Remove speaker frame (1).

Fig 1: Removing Speaker Frame Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) along lines must not be damaged.

Replacement:

Remove solar sensor (2). Refer to 64 11 992 REMOVING AND INSTALLING/REPLACING SOLAR SENSOR .

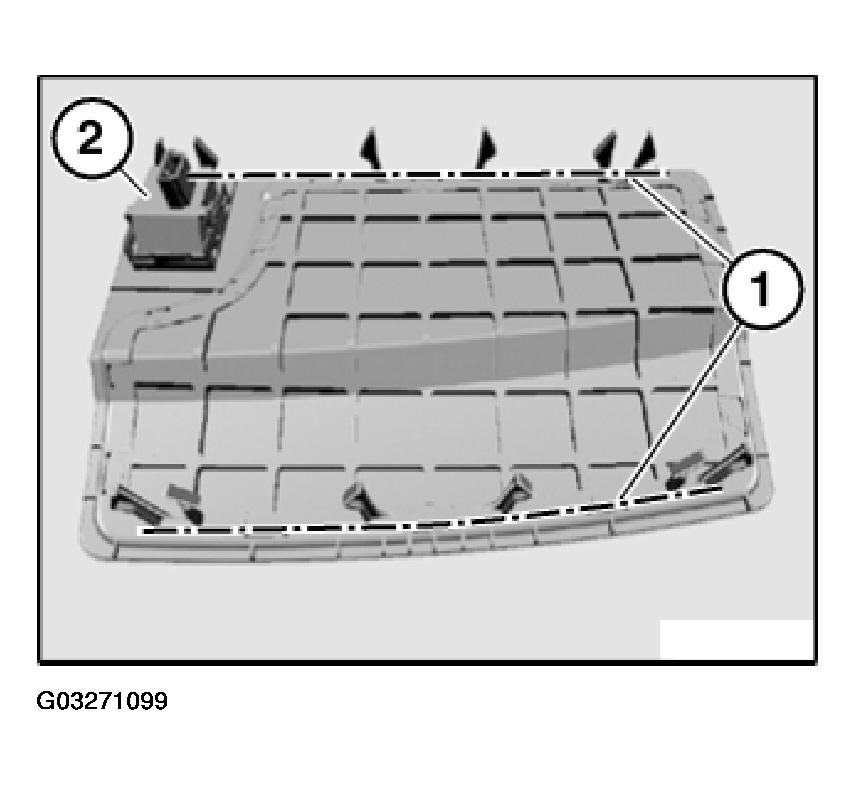

Fig 2: Identifying Locks Along Edge

Courtesy of BMW OF NORTH AMERICA, INC.
