51 41 019 Removing and installing/replacing door handle on door trim panel, front left or right

Necessary Preliminary Tasks:

• Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Unscrew nuts (1).

Tightening torque, refer to 51 41 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Unscrew nuts (2).

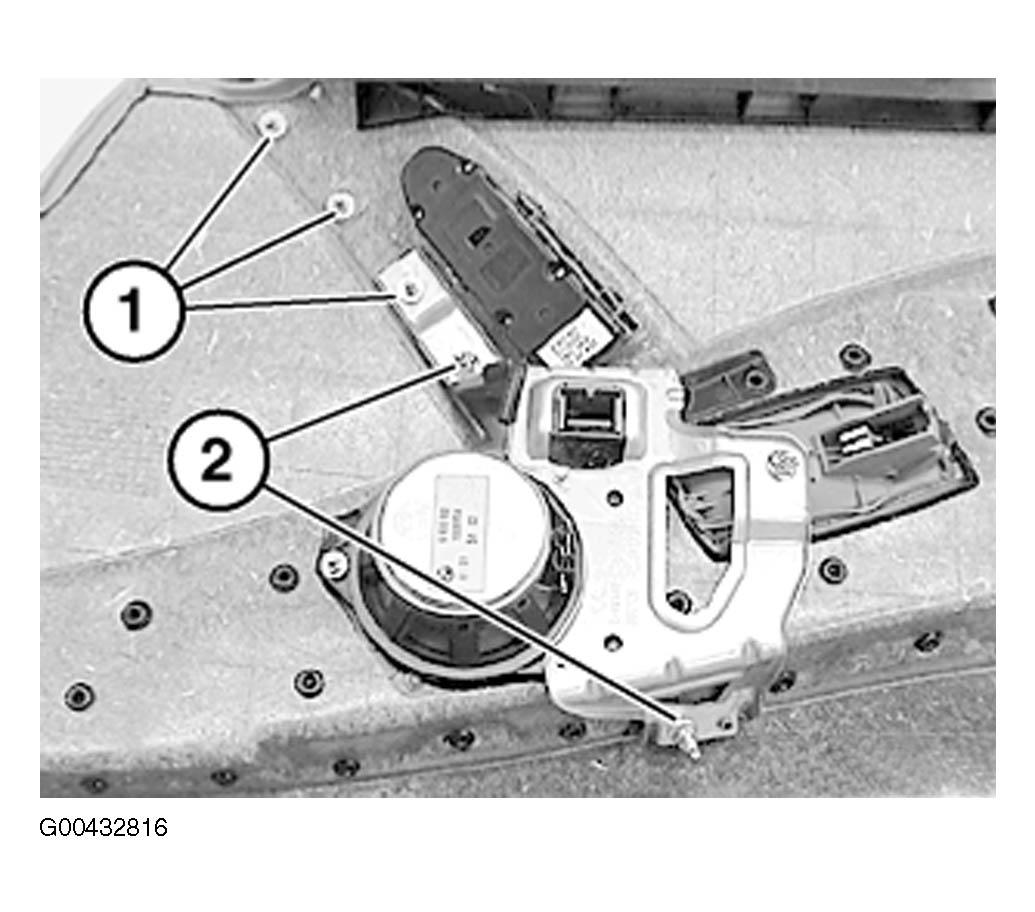

Fig 1: Locating Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Lever inside handle (1)

1. Out of upper screw fastening points,
2. And pull off upwards from door trim panel (2).

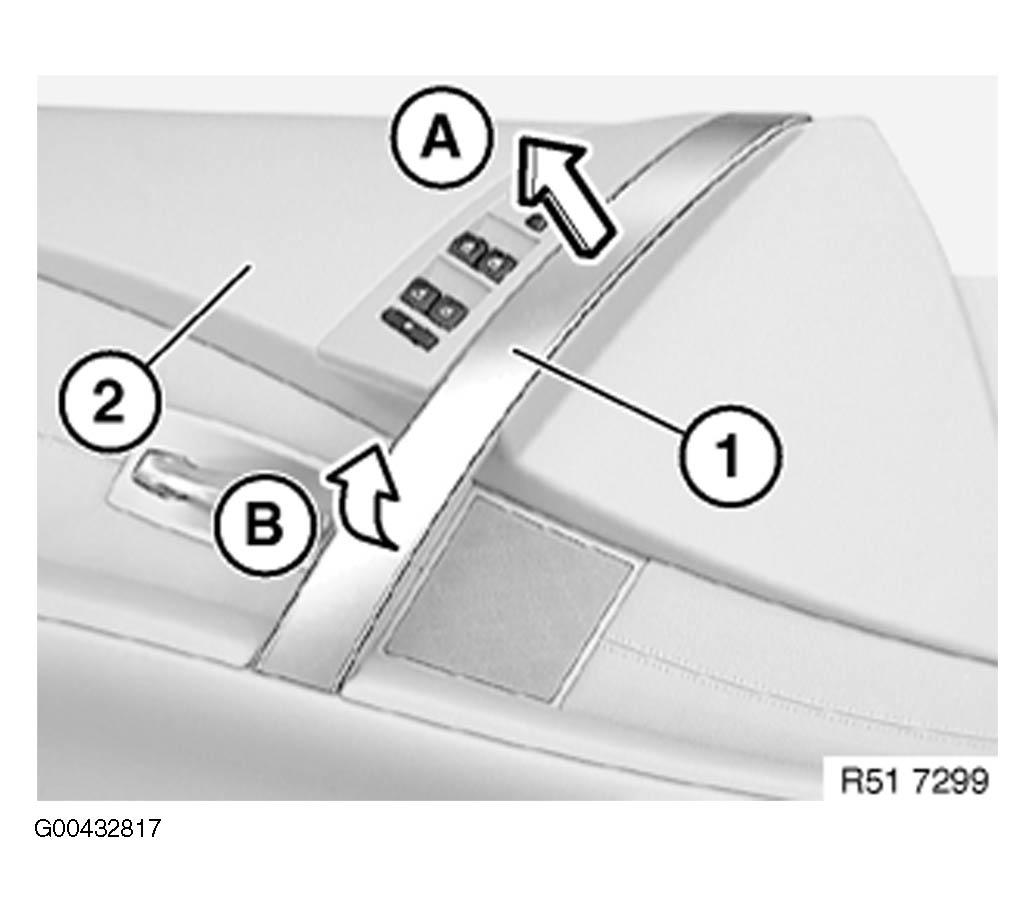

   Fig 2: Identifying Inside Handle

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screws (1) and fixtures of inside handle (2) must not be damaged.

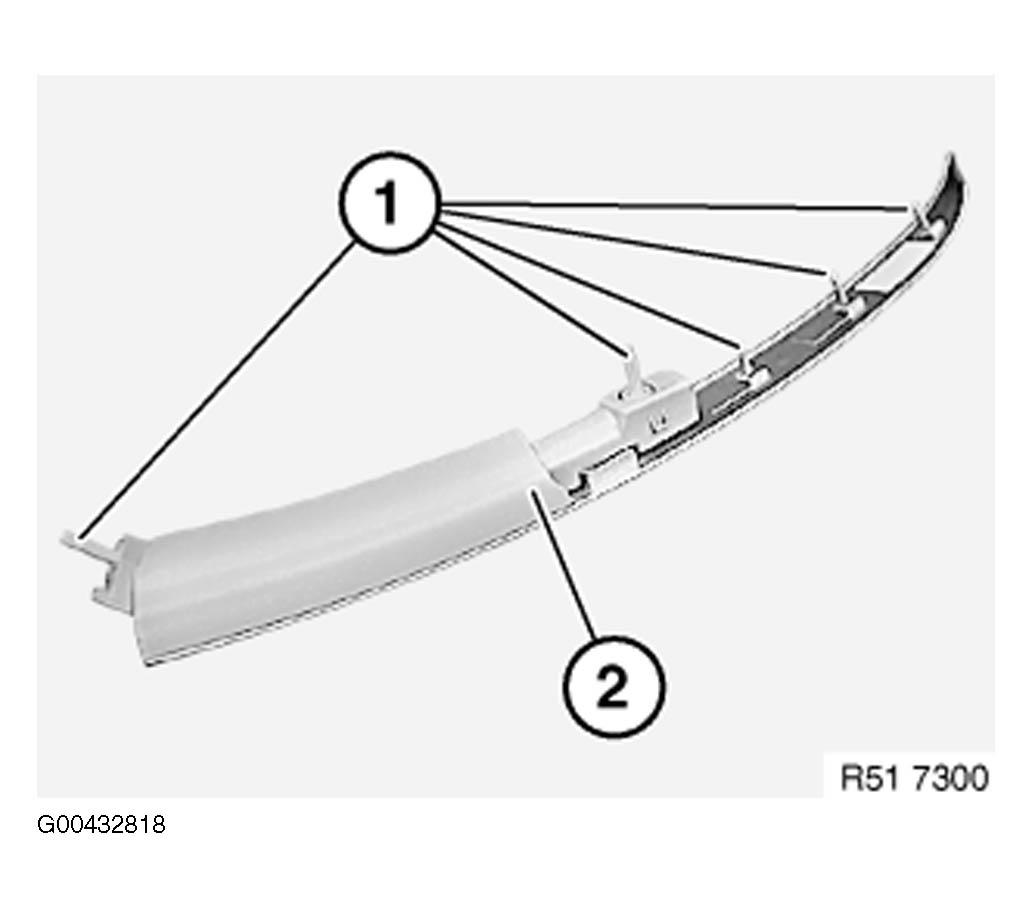

Fig 3: View Of Inside Handle Screws And Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Feed inside handle (1) in direction of arrow out of decorative strip (2) and remove.

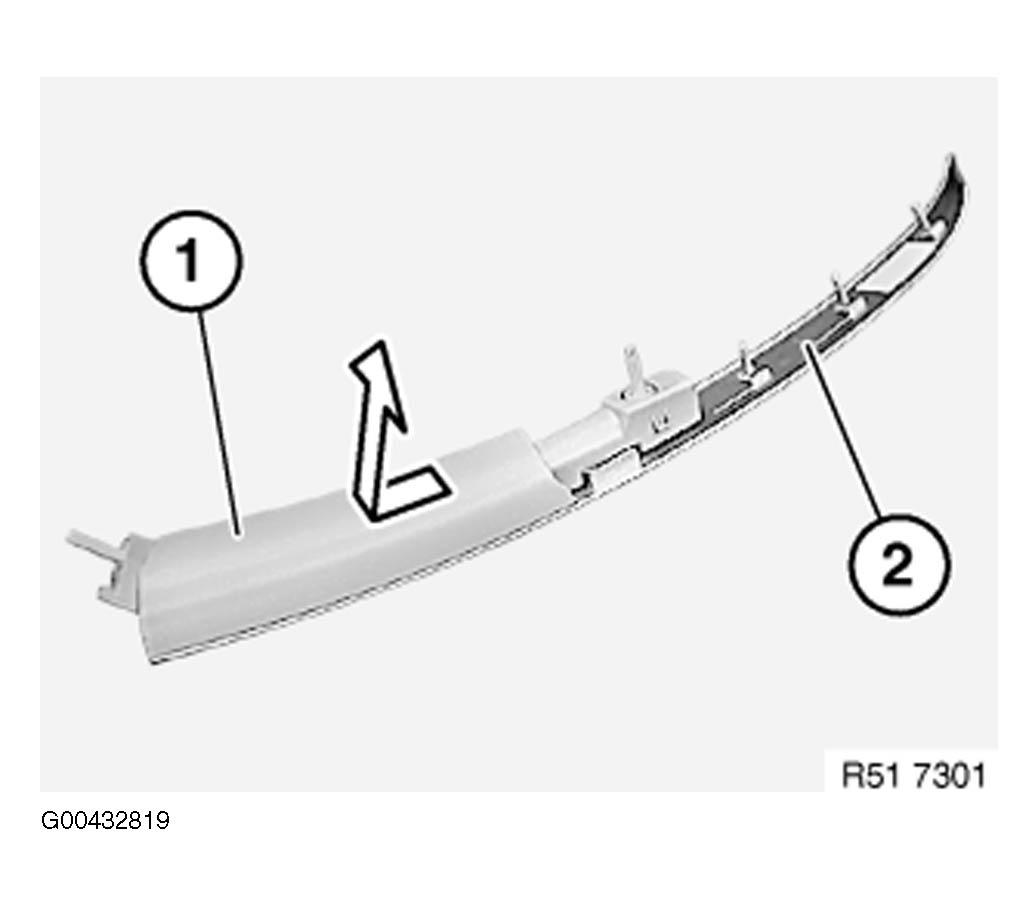

Fig 4: Removing Inside Handle From Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on decorative strip (2) must not be damaged.

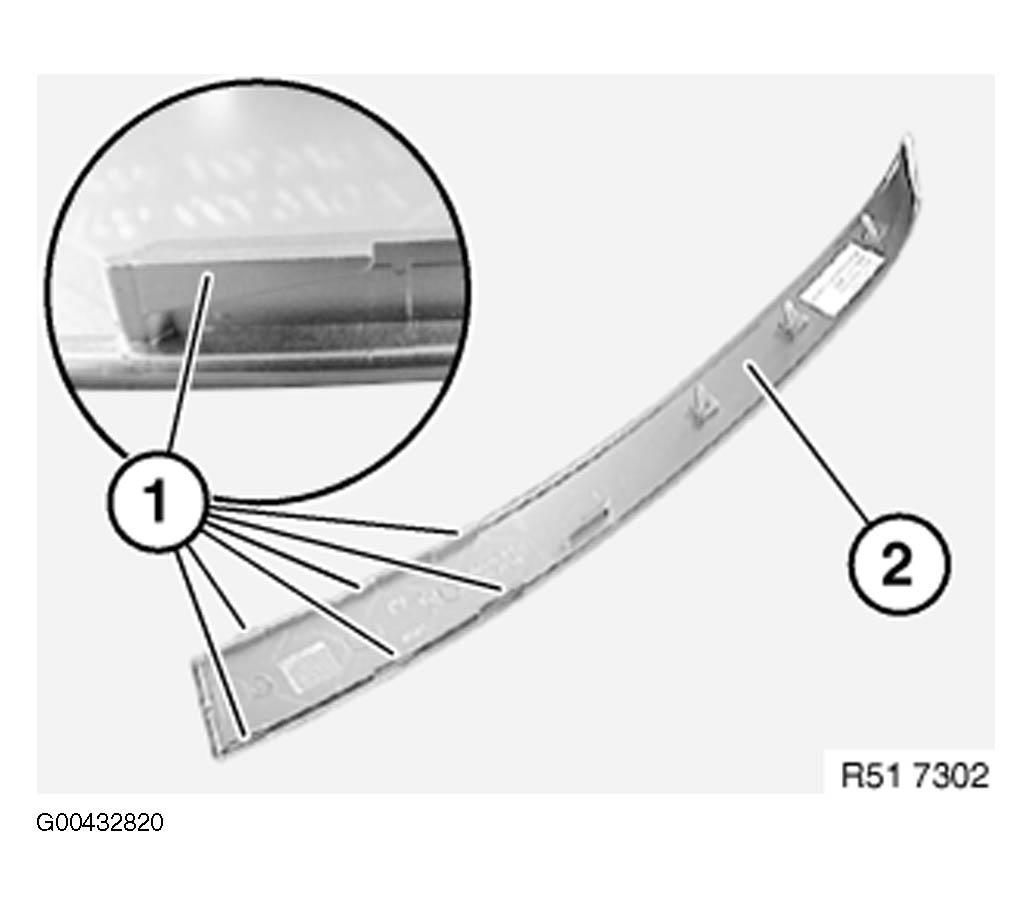

Fig 5: Locating Decorative Strip Catches

Courtesy of BMW OF NORTH AMERICA, INC.
