51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) in direction of arrow from front door (2).

Installation:

Start clipping in cover (1) at rear (B-pillar) (risk of damage). Clip clips of cover (1) correctly into bores (3).

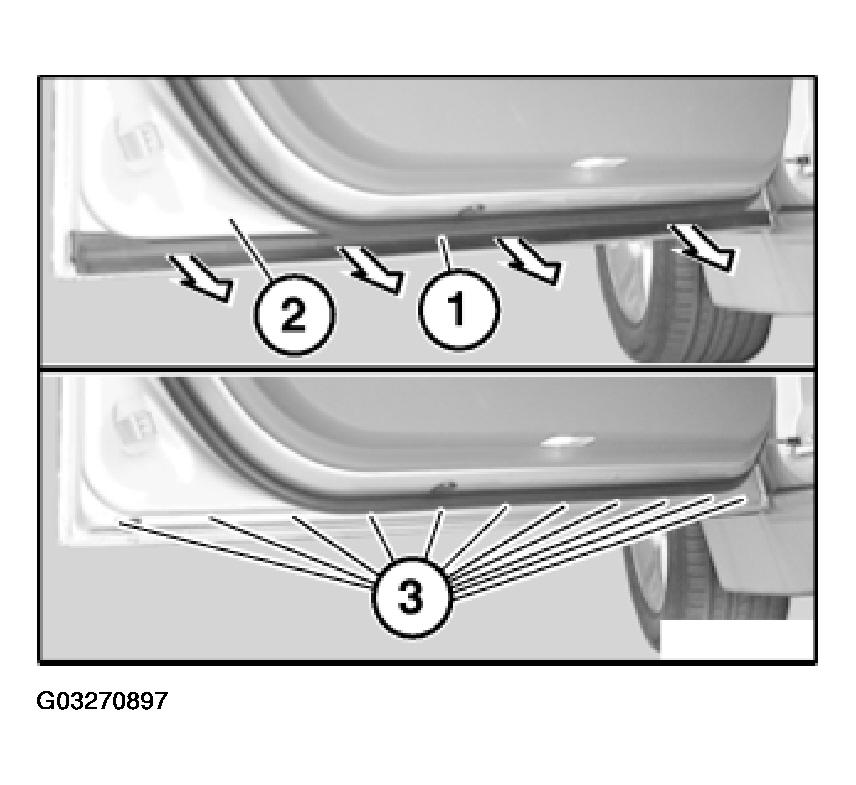

Fig 1: Removing Cover From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

Cover (2) has an aluminum insert (3).

Only press on clips (1) when installing otherwise cover (2) will become uneven.

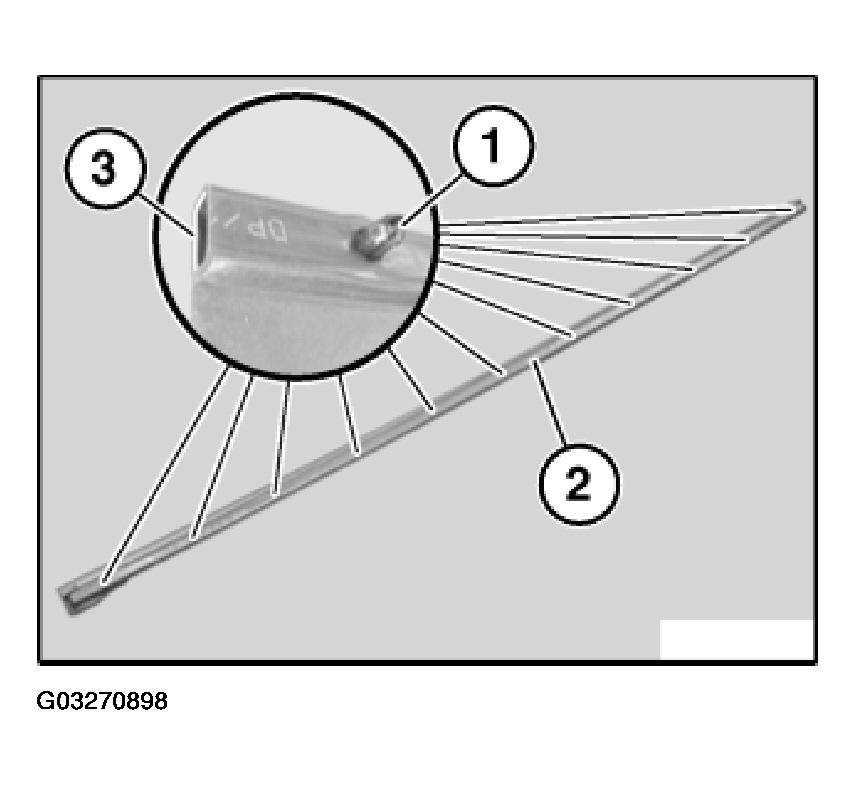

Fig 2: View Of Clips Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
