51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

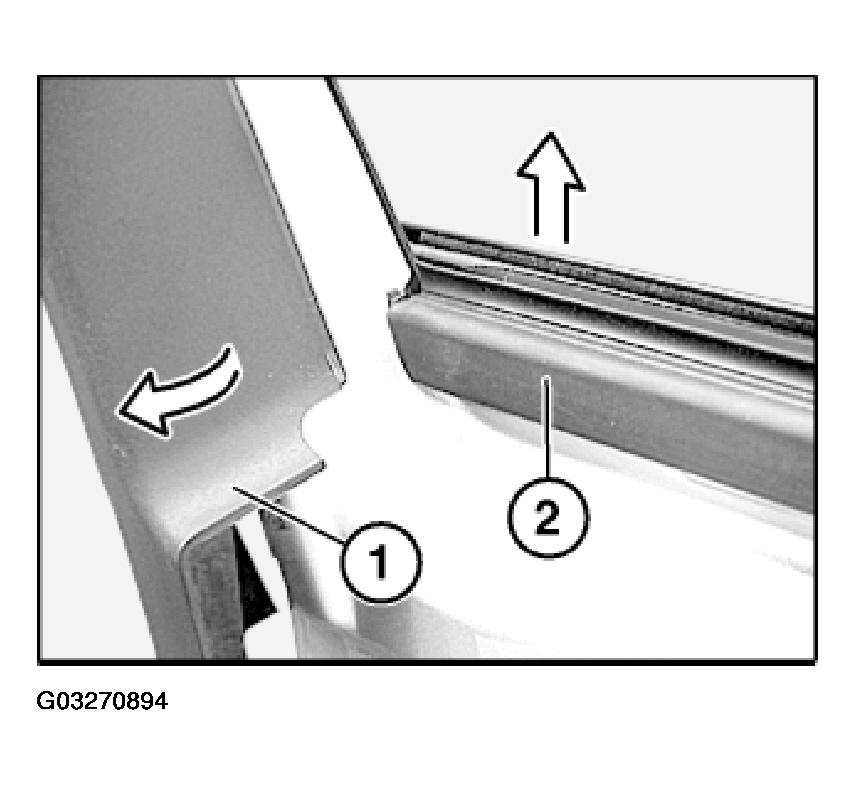

Lever out cover (1) at rear slightly.

Start at rear with removal of window cavity cover strip (2).

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

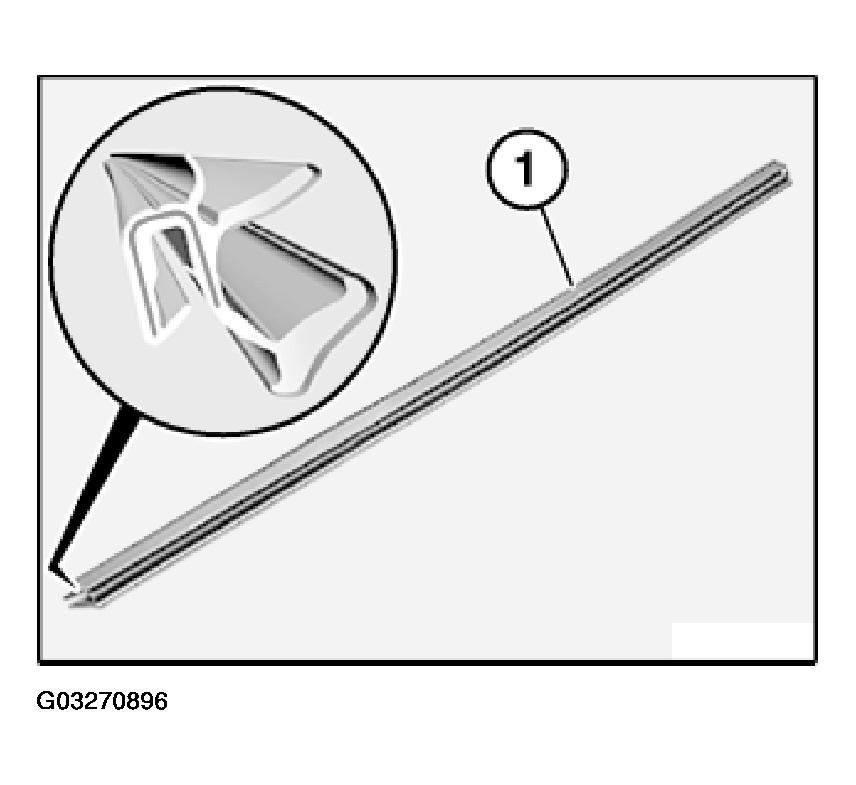

Cut window cavity cover strip (1) to length on B-pillar side to 680 mm.

Pull off window cavity cover strip (1) towards top.

Replacement with Security version:

Installation:

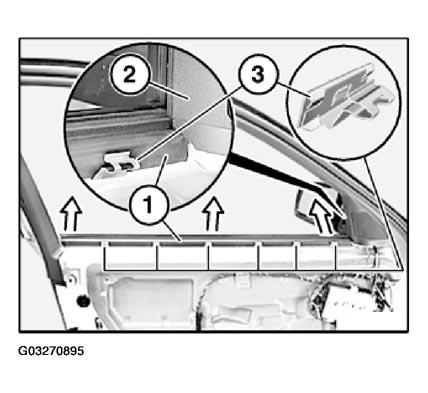

If necessary, replace faulty clips (3).

Insert window cavity cover strip (1) below cover (2).

Fig 2: Inserting Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

Fig 3: View Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
