51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 311

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Using special tool 00 9 311 (beginning at front proceeding to rear), lever out window cavity cover strip (1).

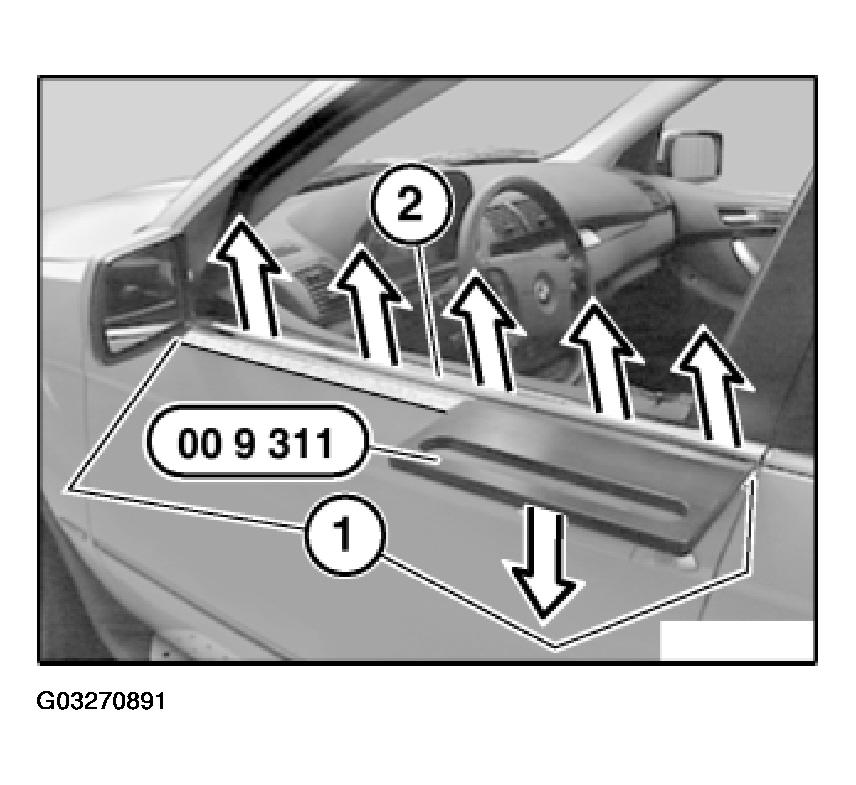

Fig 1: Removing Window Cavity Cover Strip Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Pull window cavity cover strip (1) out of mirror (2) in direction of arrow.

Installation:

Coat window cavity cover strip (1) with water before fitting. Window cavity cover strip (1) must be flush at rear to door edge.

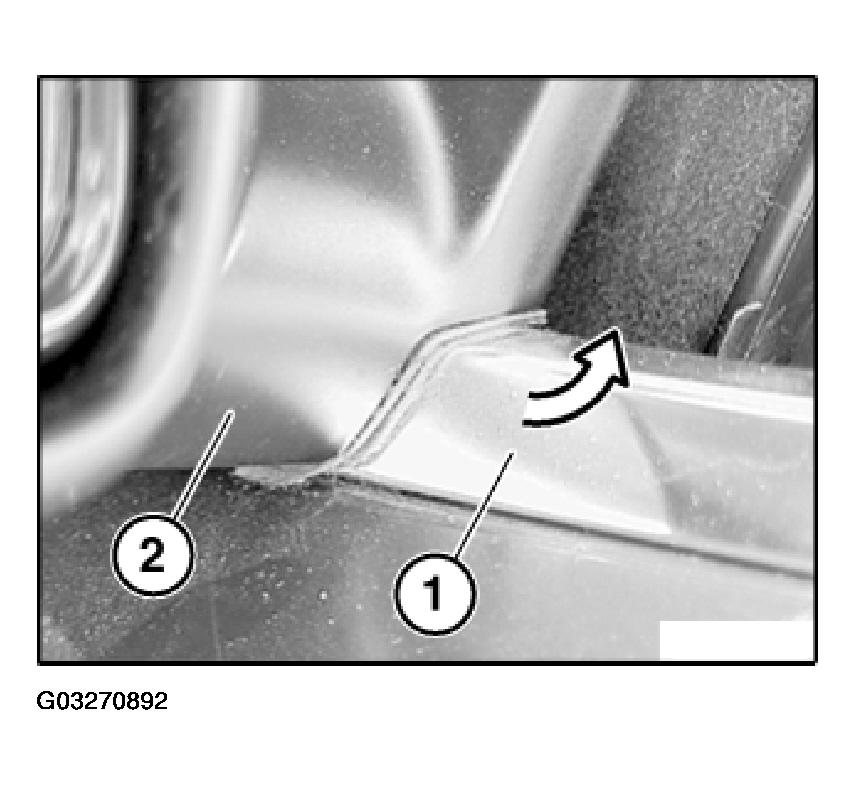

Fig 2: Removing Window Cavity Cover Strip Out Of Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must be correctly fitted in chrome strip (2).

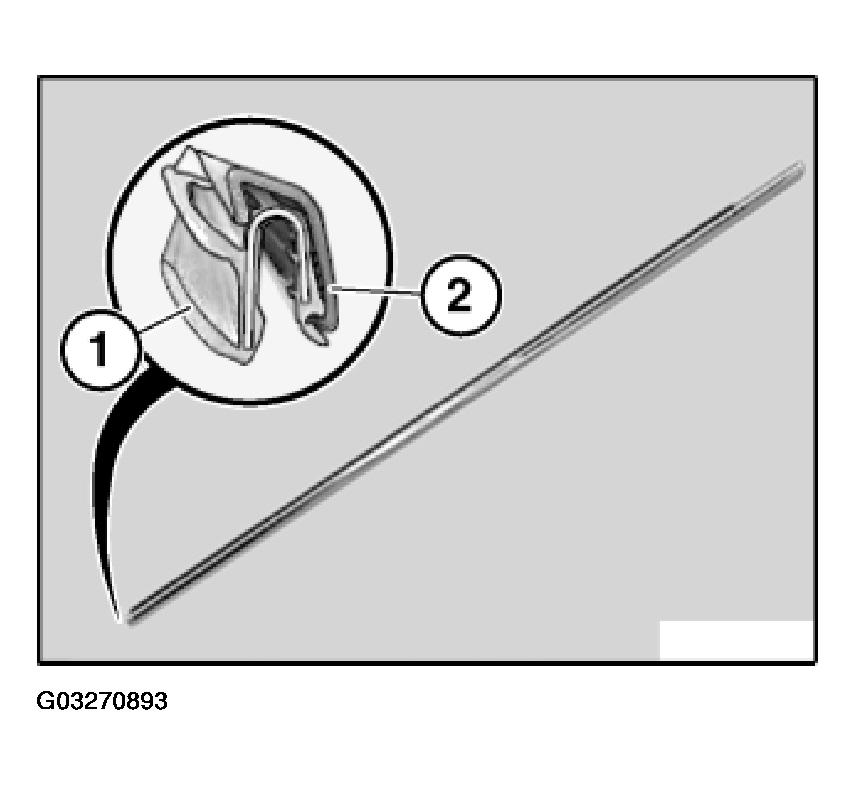

Fig 3: Installing Seal In Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
