51 21 280 Removing and installing or replacing door stop on left or right front door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Close door windows.
Remove sound insulation in front area only. Refer to 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR .

NOTE: Secure front door against falling closed.

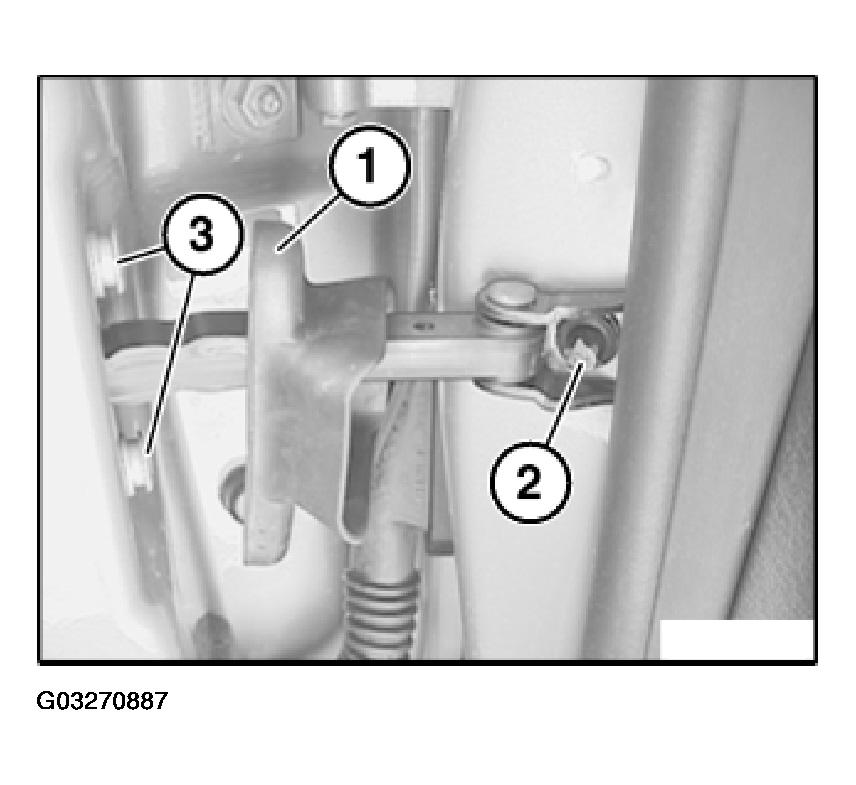

Lever out seal (1).

Unfasten screws (2 and 3).

Fig 1: Removing Door Seal

Courtesy of BMW OF NORTH AMERICA, INC.

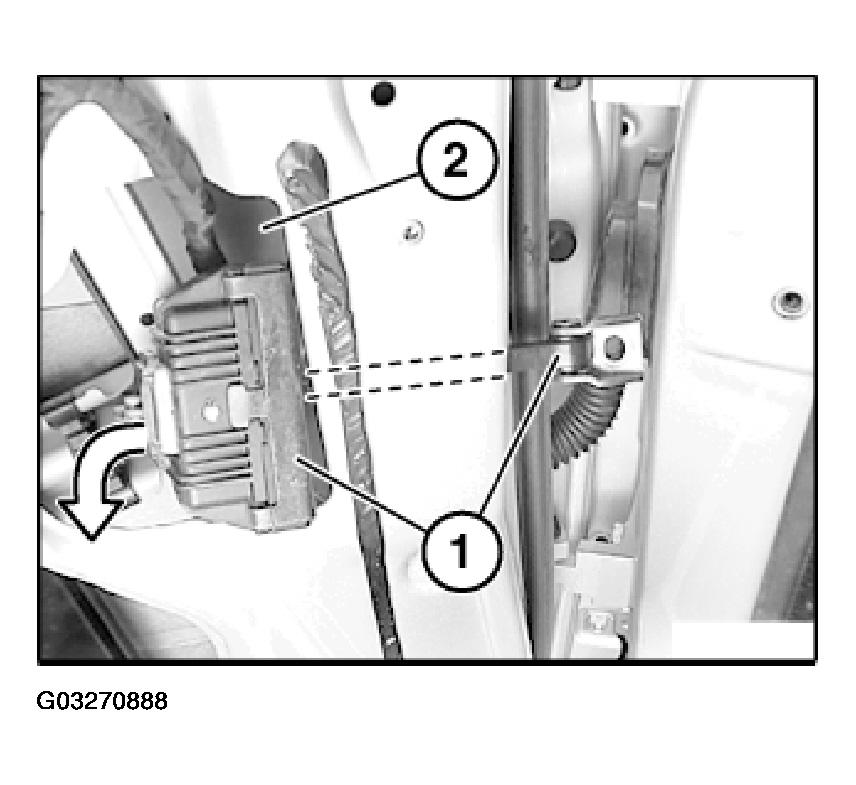

Remove door brake (1) via cutout (2).

Fig 2: Removing Door Brake

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

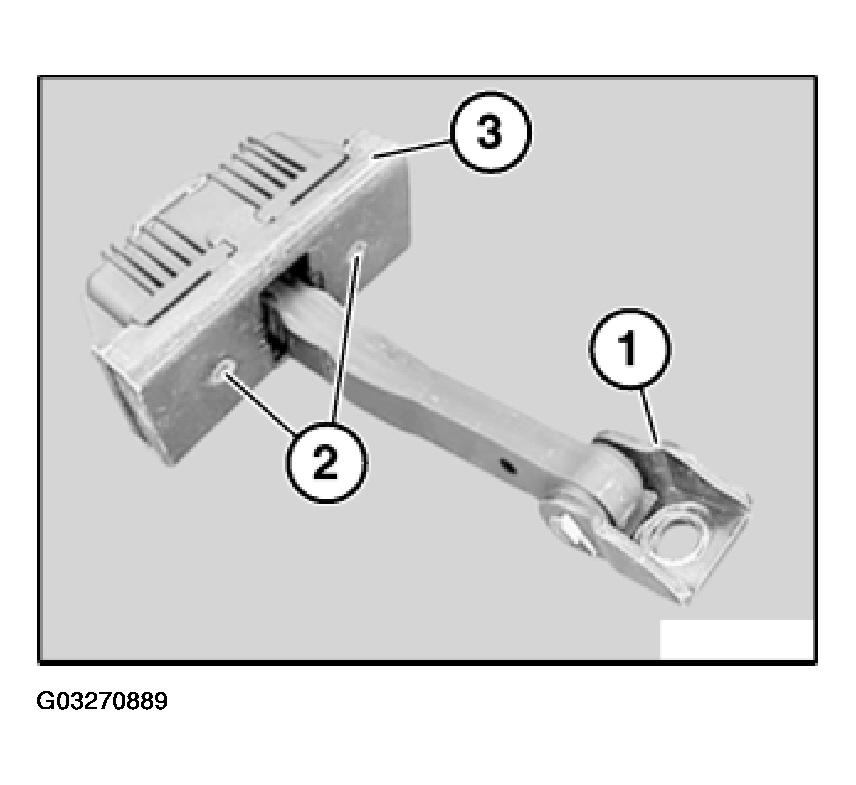

Following parts of door brake (3) must not be damaged:

Hinge.
Thread.

Fig 3: View Of Door Seal
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

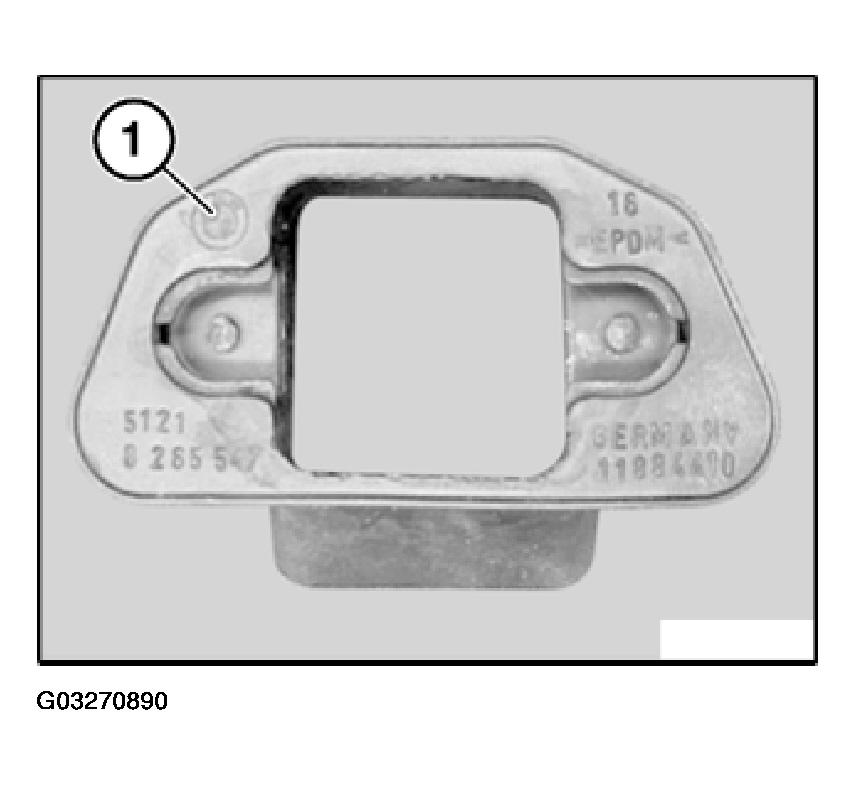

Seal (1) must not be damaged.

Fig 4: Installing Door Seal

Courtesy of BMW OF NORTH AMERICA, INC.
