51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front door trim. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

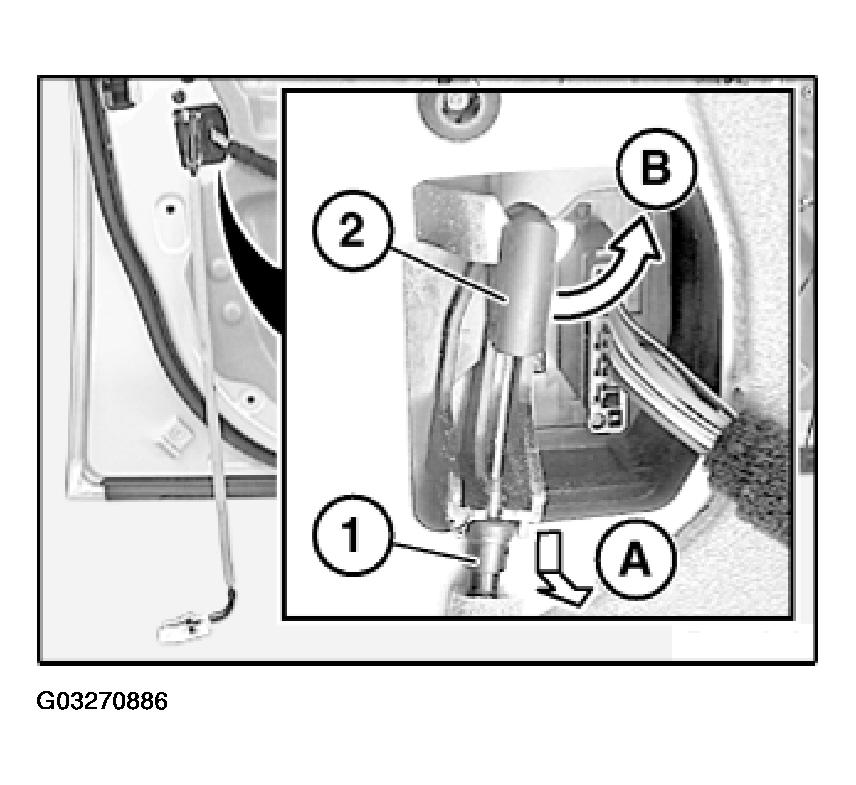

- Lever out Bowden cable sleeve (1) in direction of arrow.
- Disconnect Bowden cable (2) towards top.
