51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

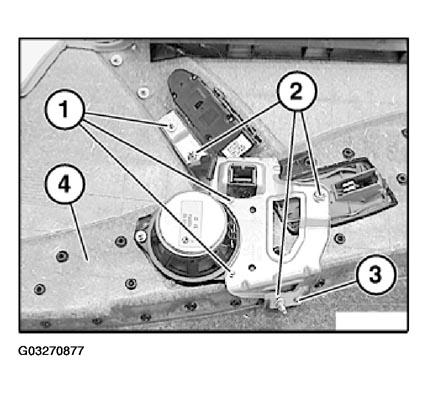

Release nuts (1 and 2).

Remove retaining plate from door trim panel (4).

Installation:

Retaining plate must be positioned over pin (3).

Fig 1: View Of Retaining Plate On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

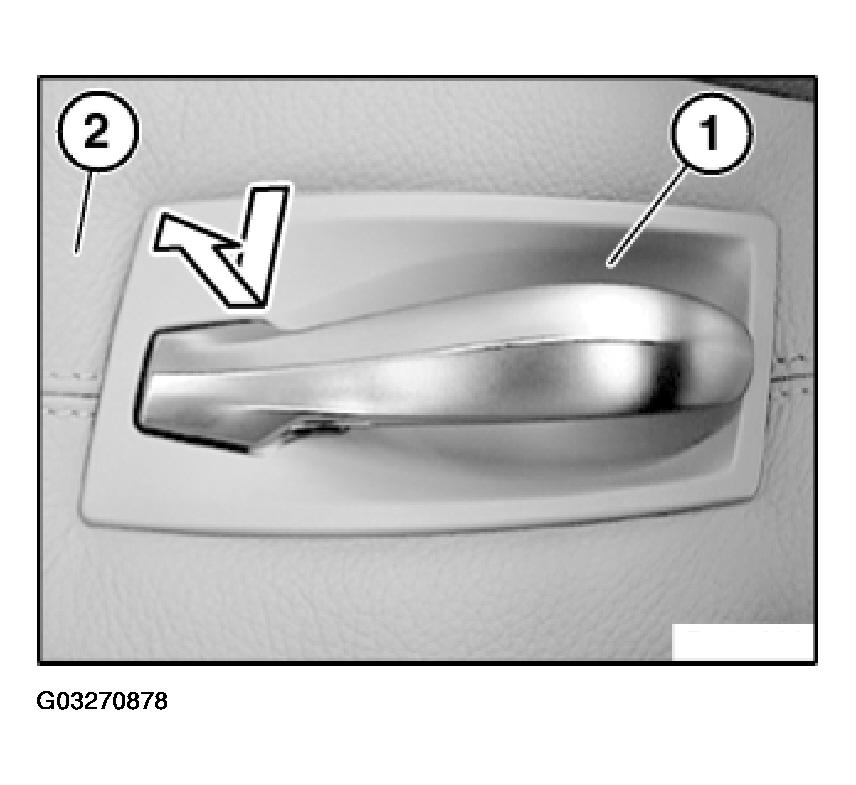

Lever door opener (1) in direction of arrow out of door trim panel (2).

Fig 2: Locating Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

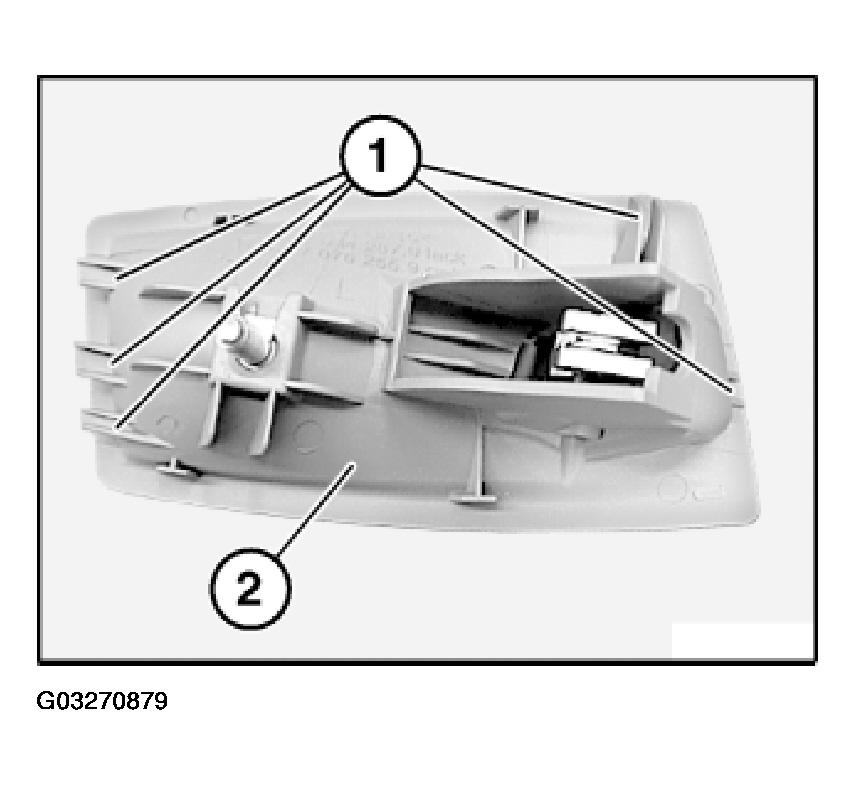

Fixtures (1) on door opener (2) must not be damaged.

Fig 3: Identifying Fixtures On Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
