51 11 180 Removing and installing/replacing grille in bumper trim (M5 or M aerodynamic kit)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

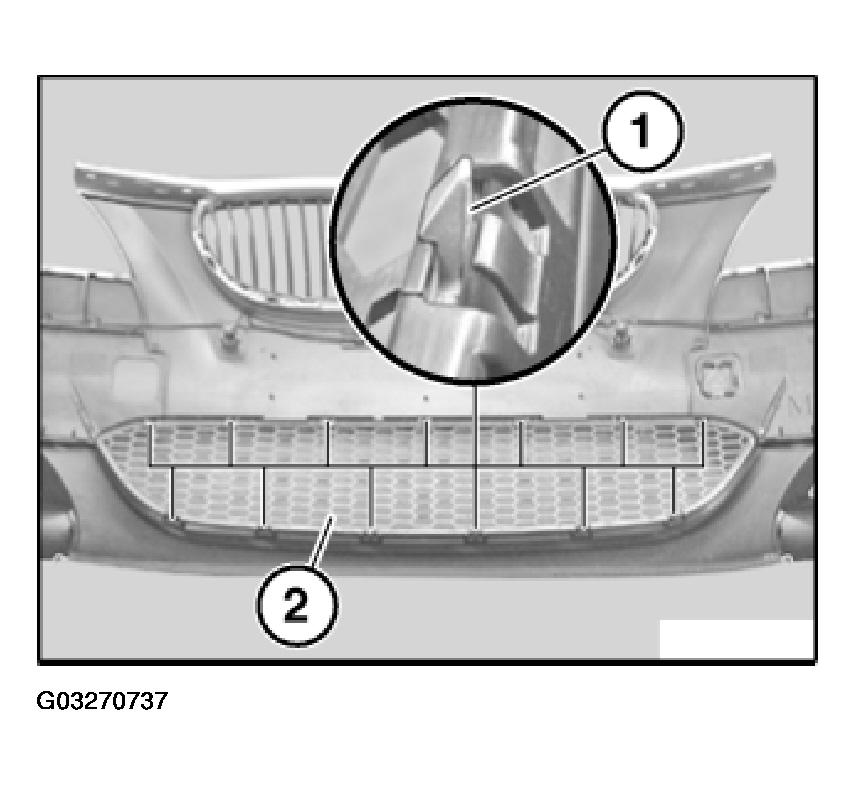

Release catches (1).
Remove trim grill (2).
Installation:
Retaining elements must not be damaged.
Grill must snap securely into place.
