51 11 160 Removing and installing/replacing trim for air duct on bumper trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1) by moving up or down.

Remove trim towards front.

Installation:

Retaining elements must not be damaged.

Trim must snap securely into place.

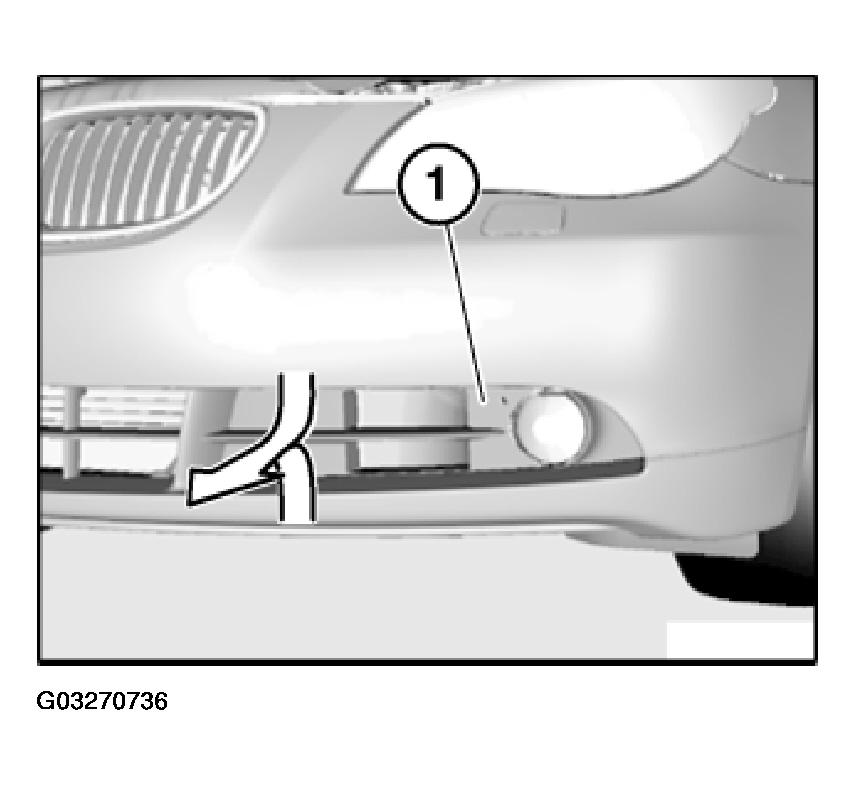

Fig 1: Removing Air Duct Trim

Courtesy of BMW OF NORTH AMERICA, INC.
