51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Field Of Vision (No Repair Acceptable):

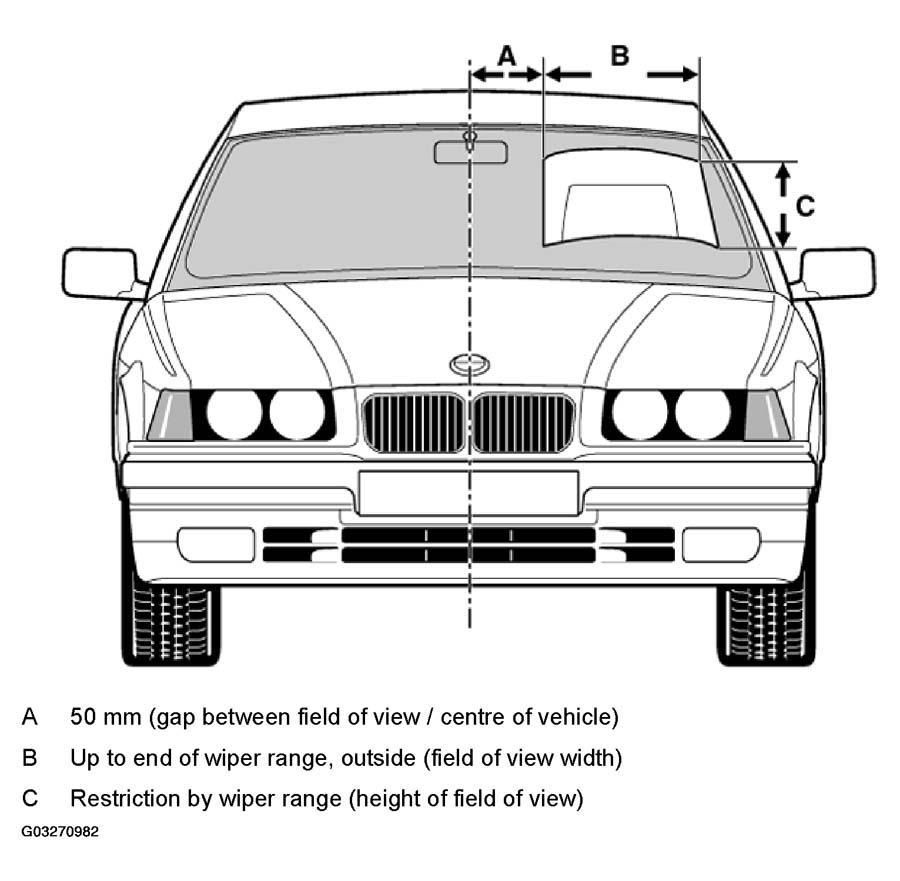

Fig 1: Identifying Field Of Vision
G03270982Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Repairs must only be carried out outside of the field of vision.

If the stone chip damage is outside the field of vision, refer to 51 31 ... INSTRUCTIONS ON GLUING WINDSCREEN .
