51 47 305 Removing and installing/replacing stowage net in front footwell

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Build date up to 08/2005:

Detach stowage net (1) from holder (2) and remove.

If necessary, replace faulty holders (2).

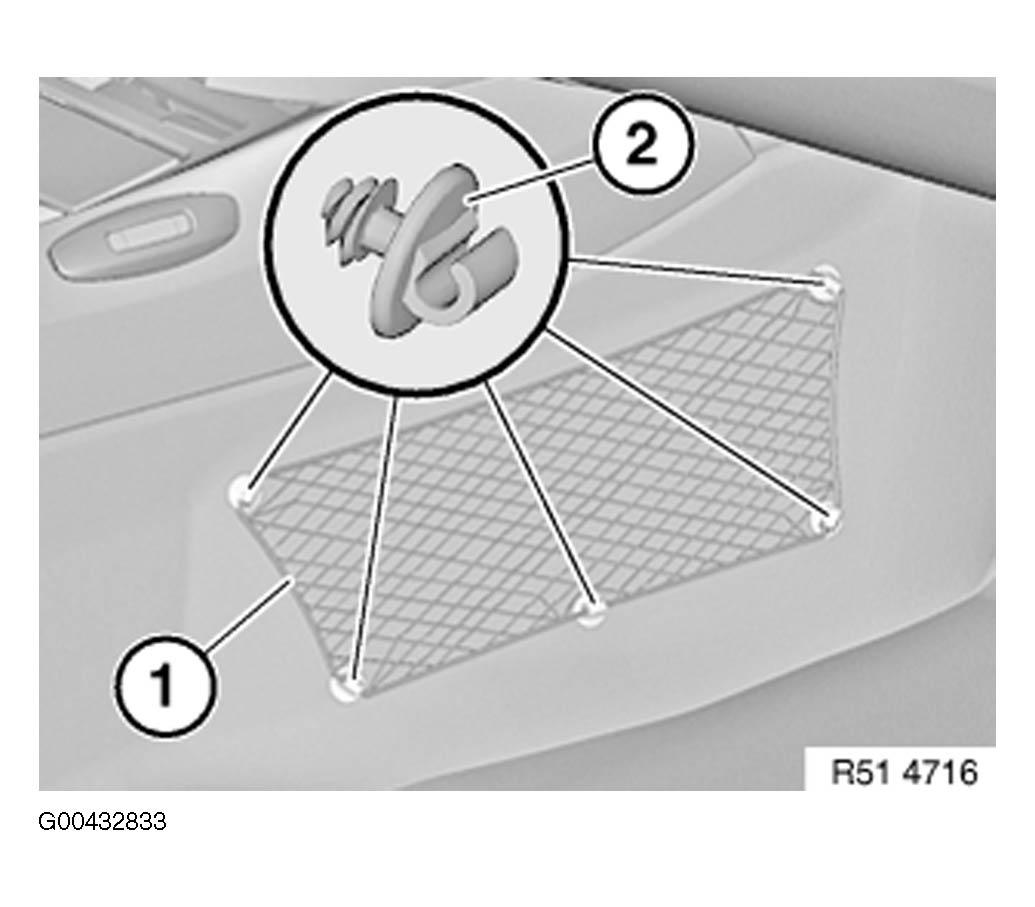

Fig 1: Identifying Stowage Net Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 09/2005:

Snap out stowage net (1) with special tool 00 9 317 in direction of arrow and remove.

Installation:

Position stowage net (1) by means of insert retainers and press into place until it can be heard to engage.

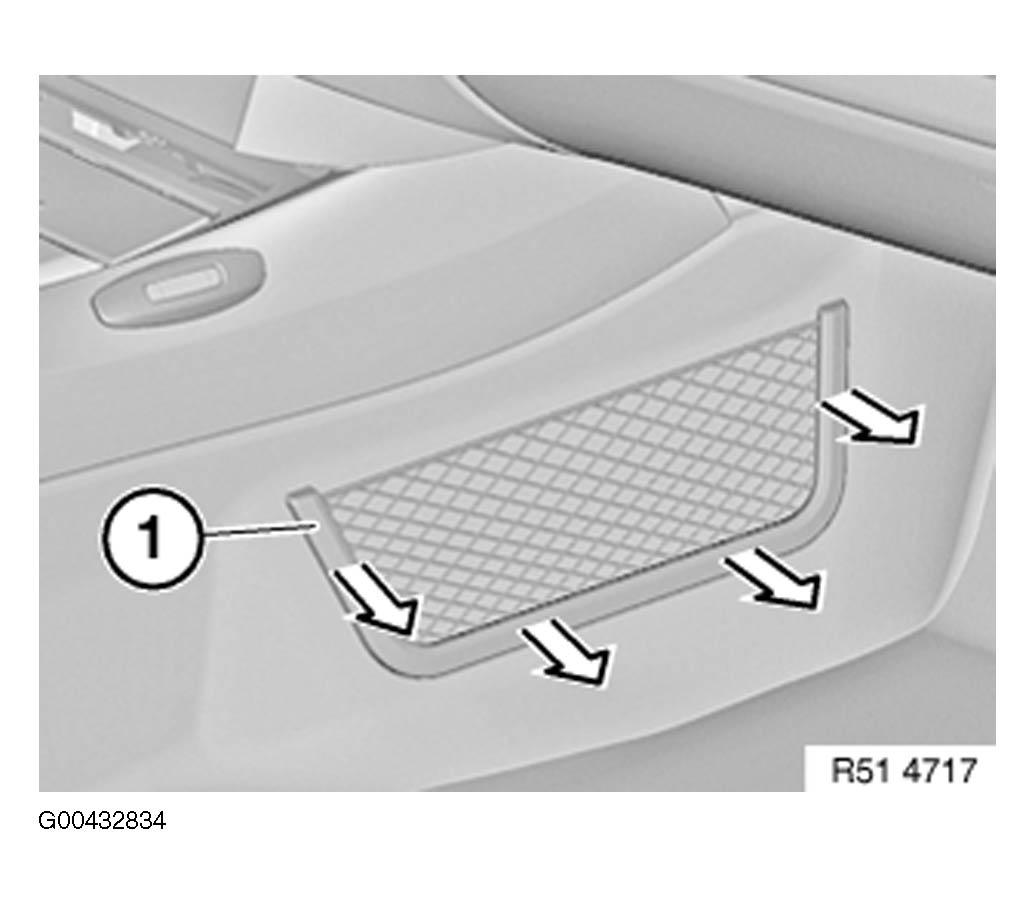

Fig 2: Removing Stowage Net

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace all insert retainers (1).

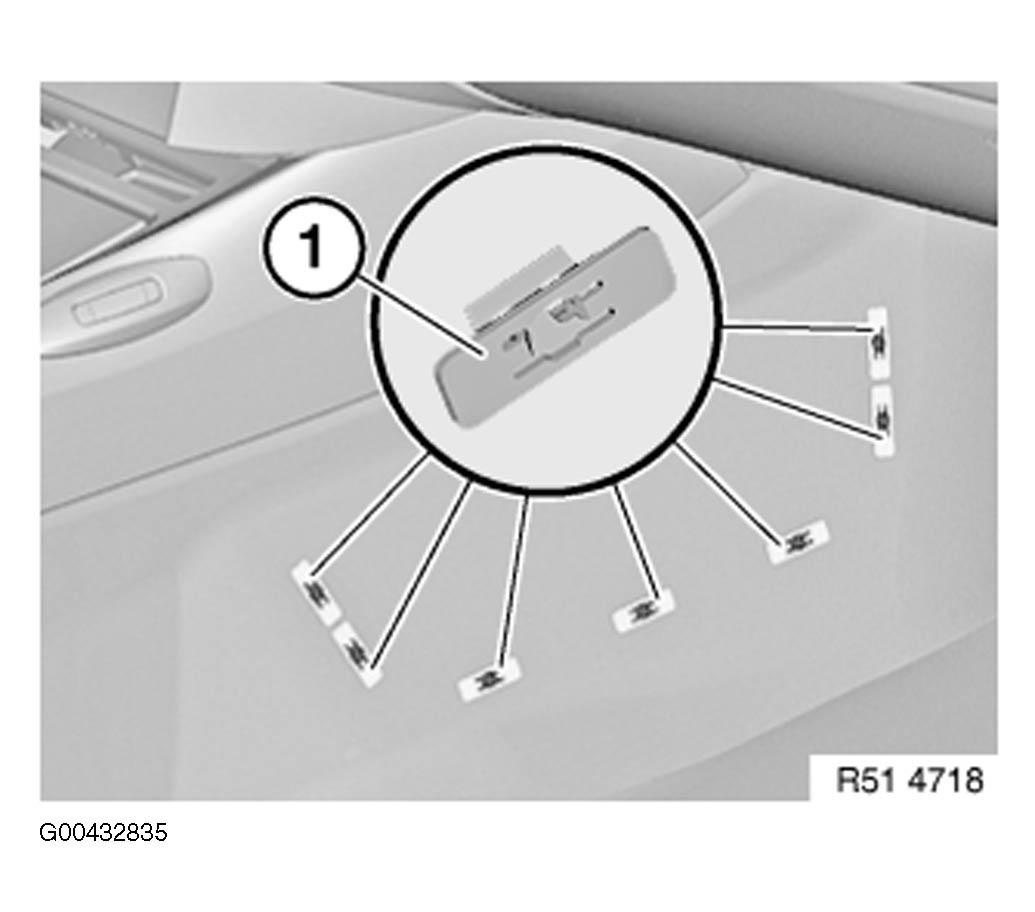

Fig 3: Locating Insert Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
