51 47 151 Removing and installing / replacing left luggage compartment wheel arch trim
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Rear seat basic version only: Remove backrest for rear seat. Refer to 52 24 010 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (BASIC) .
- Version with through-loading system only: Fold down backrest for left rear seat.
- Remove luggage compartment trim on side panel. Refer to 51 47 210 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON LEFT SIDE PANEL and 51 47 220 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON RIGHT SIDE PANEL .

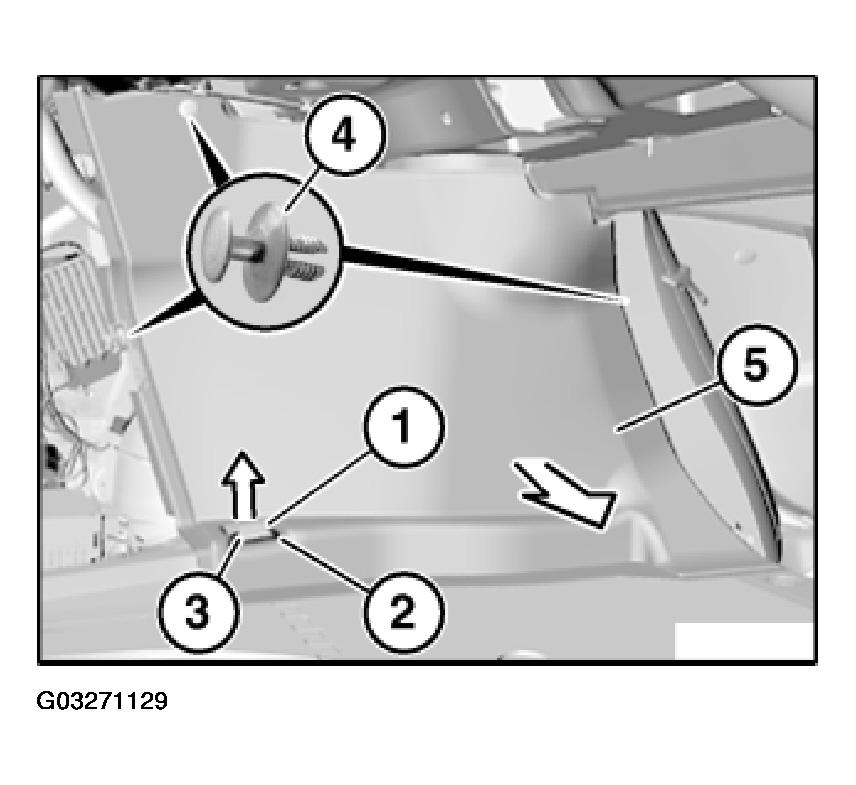

Lever out lashing eye trim (1) in direction of arrow and remove. Release screw (3) and remove lashing eye (2).
Release expansion rivets (4) and remove luggage compartment wheel arch trim (5) in direction of arrow.
