51 47 065 Removing and installing/replacing finishing strip at front left or right entrance

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Unclip clips (1) for finishing strip (2) with special tool 00 9 317.

Remove finishing strip (2).

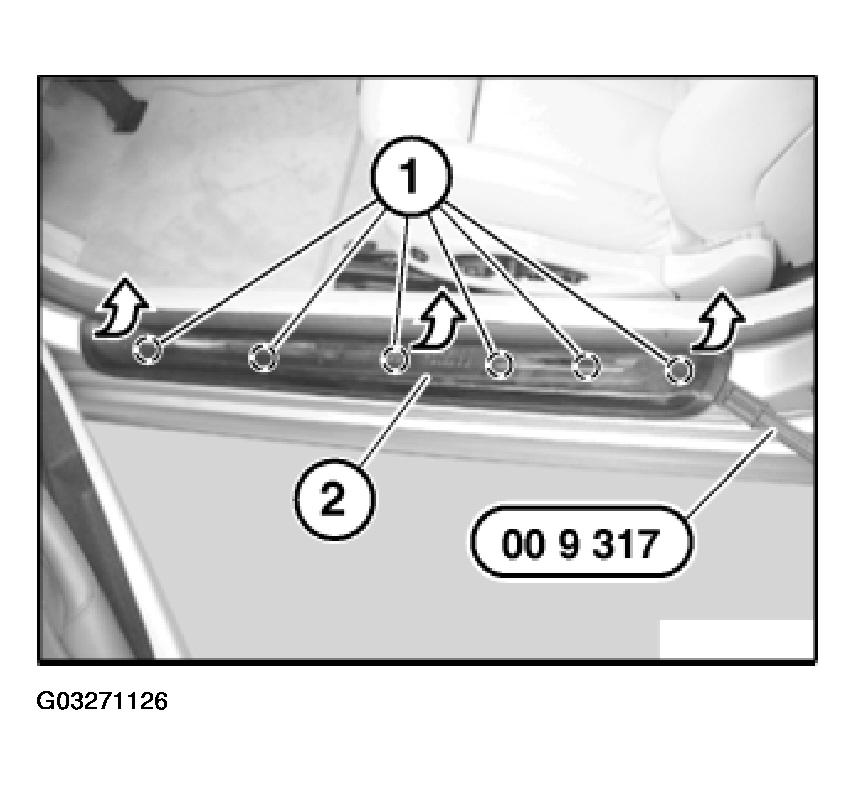

Fig 1: Removing Finishing Strip Clips Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

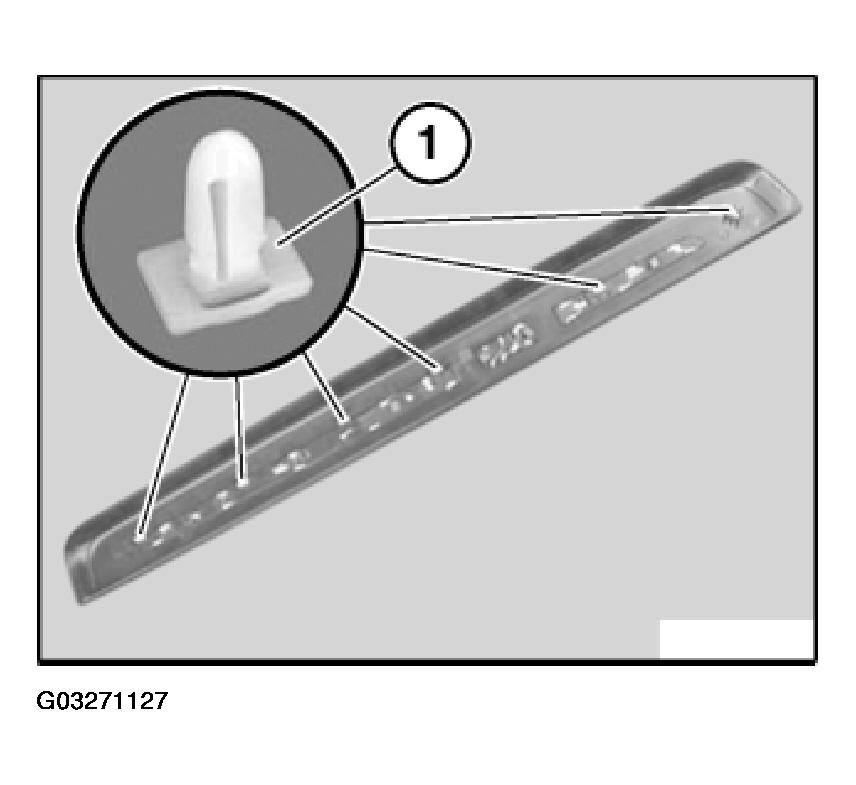

Fig 2: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
