51 47 030 Removing and installing/replacing entrance cover strip, rear (inside) left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 341

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .

Release screw (1) of entrance cover strip (2).

Insert special tool 00 9 341 at front under cover strip.

Pull out entrance cover strip (2) downwards/forwards.

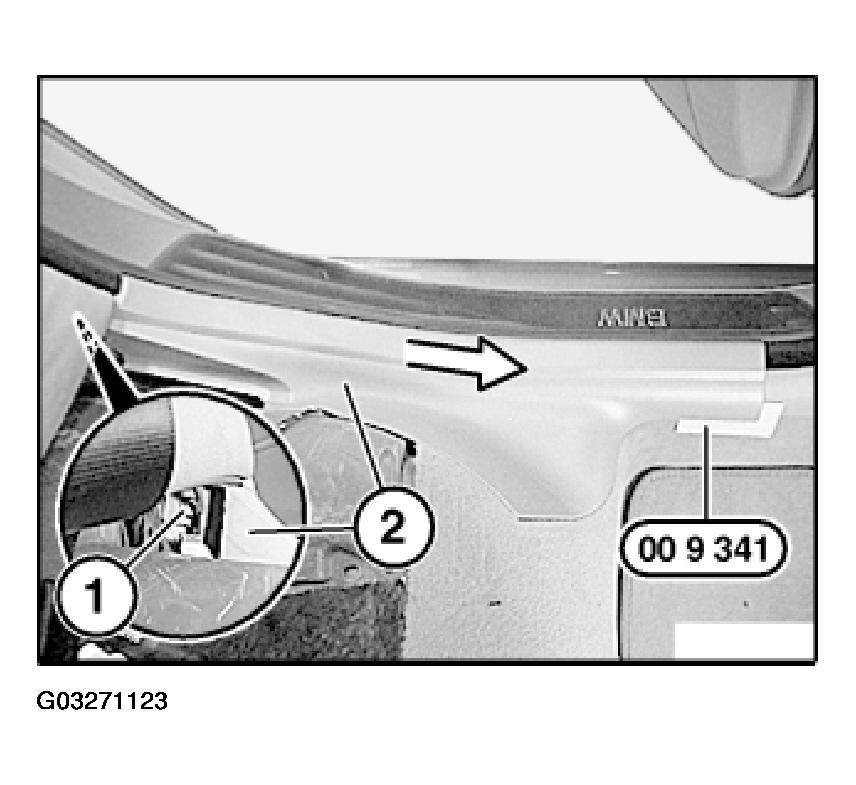

Fig 1: Locating Entrance Cover Strip Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clips (1) with pliers (head of pliers surface-ground).

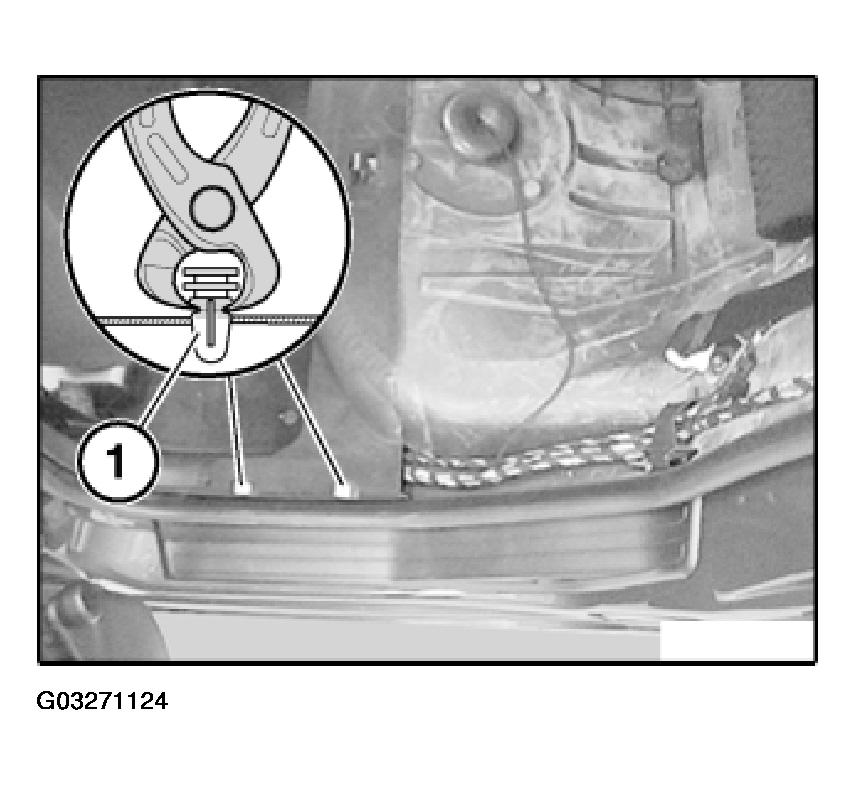

Fig 2: Removing Clips Using Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Push clips (2) onto entrance cover strip (1).

Installation:

Following parts of entrance cover strip (1) must not be damaged or missing:

2) Clips.
3) Retaining lug.
4) Guides for clips.
5) Bore.

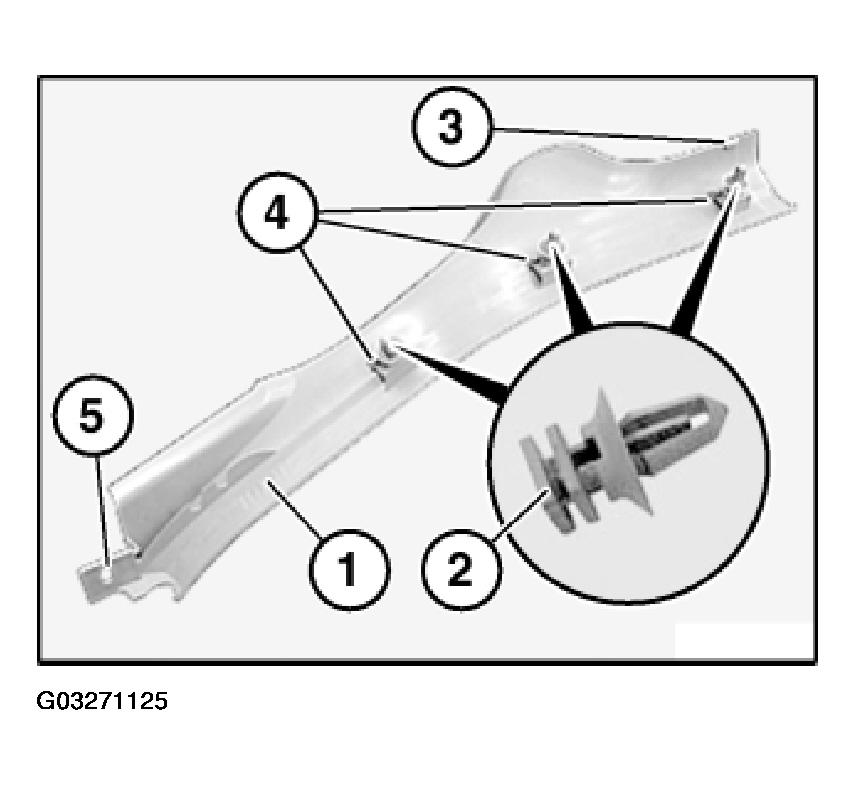

Fig 3: Identifying Clips, Retaining Lugs And Guides For Clips
Courtesy of BMW OF NORTH AMERICA, INC.
