BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|

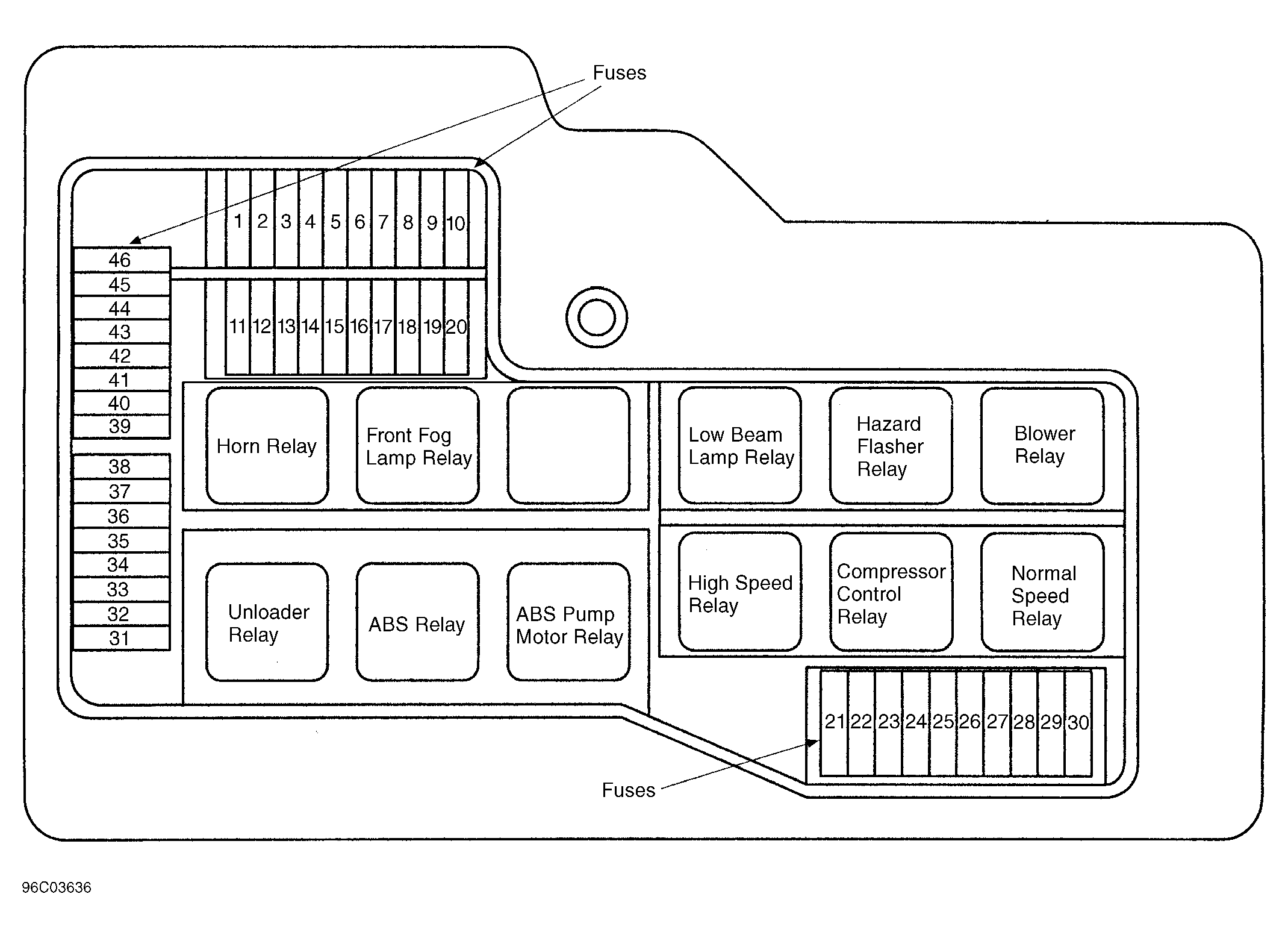

| ABS Pump Motor Relay | In engine compartment front power distribution box. See Figure. |
| ABS Relay | In engine compartment front power distribution box. See Figure. |
| Blower Relay | In engine compartment front power distribution box. See Figure. |
| Compressor Control Relay | In engine compartment front power distribution box. See Figure. |

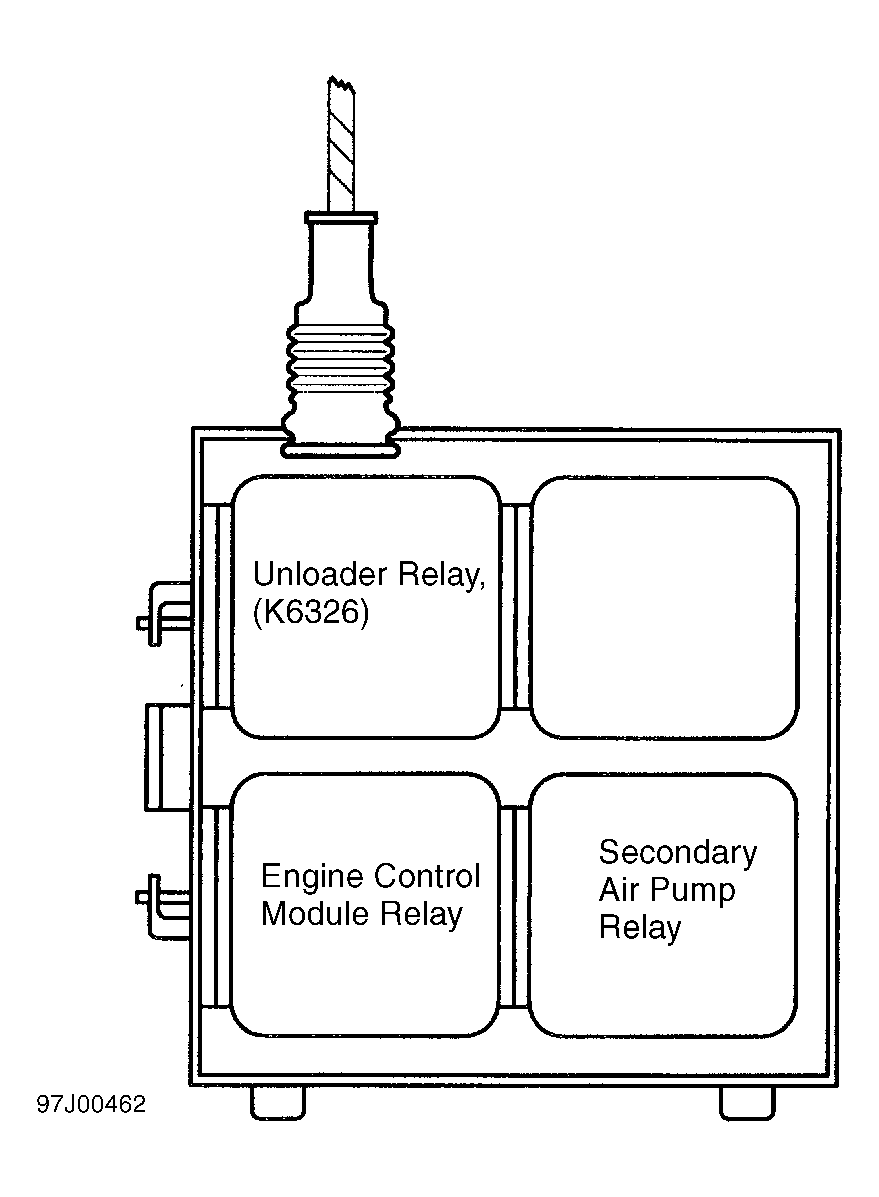

| Engine Control Module Relay | In E-box, on rear right side of engine compartment. See Figure. |
| Front Fog Lamp Relay | In engine compartment front power distribution box. See Figure. |

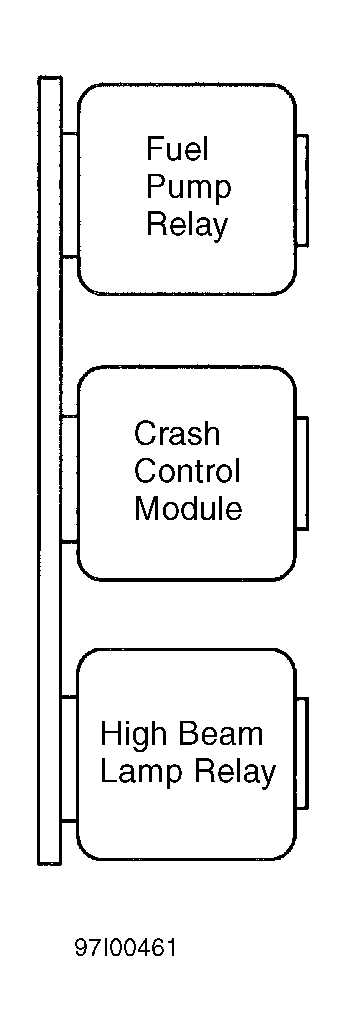

| Fuel Pump Relay | On relay panel, under left side of dash. See Figure. |
| Hazard Flasher Relay | In engine compartment front power distribution box. See Figure. |
| High Beam Lamp Relay | On relay panel, under left side of dash. See Figure. |
| High Speed Relay | In engine compartment front power distribution box. See Figure. |
| Horn Relay | In engine compartment front power distribution box. See Figure. |
| Low Beam Lamp Relay | In engine compartment front power distribution box. See Figure. |
| Normal Speed Relay | In engine compartment front power distribution box. See Figure. |
| Secondary Air Pump Relay | In E-box, on rear right side of engine compartment. See Figure. |
| Unloader Relay (K9) | In engine compartment front power distribution box. See Figure. |
| Unloader Relay (K6326) | In E-box, on rear right side of engine compartment. See Figure. |
