13 71 030 Removing and installing/replacing both intake silencer housings (N63 B40/B44 O 0/1)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Remove ACOUSTIC COVER .

NOTE: Description for left air filter box. Procedure on right side identical.

Release clamps (1).

Tightening torque 13 62 9AZ .

Disconnect connector (2) at the hot film air mass meter.

Release clamp (3).

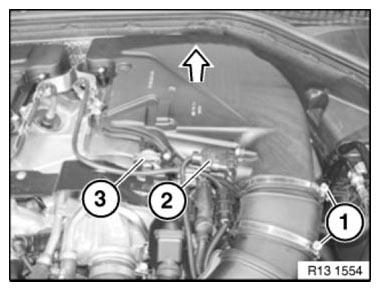

Fig 1: Disconnecting Hot Film Air Mass Meter Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the oxygen sensor cable from the intake filter housing.

Detach the intake air filter housing from the intake port and pull off upwards.
