36 10 209 Checking front and rear wheel for face and radial runout

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see WHEEL & TIRES - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

36 1 030

Necessary Preliminary Tasks:

Check wheel bearings.

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA- 545I (4.4L) E60 .

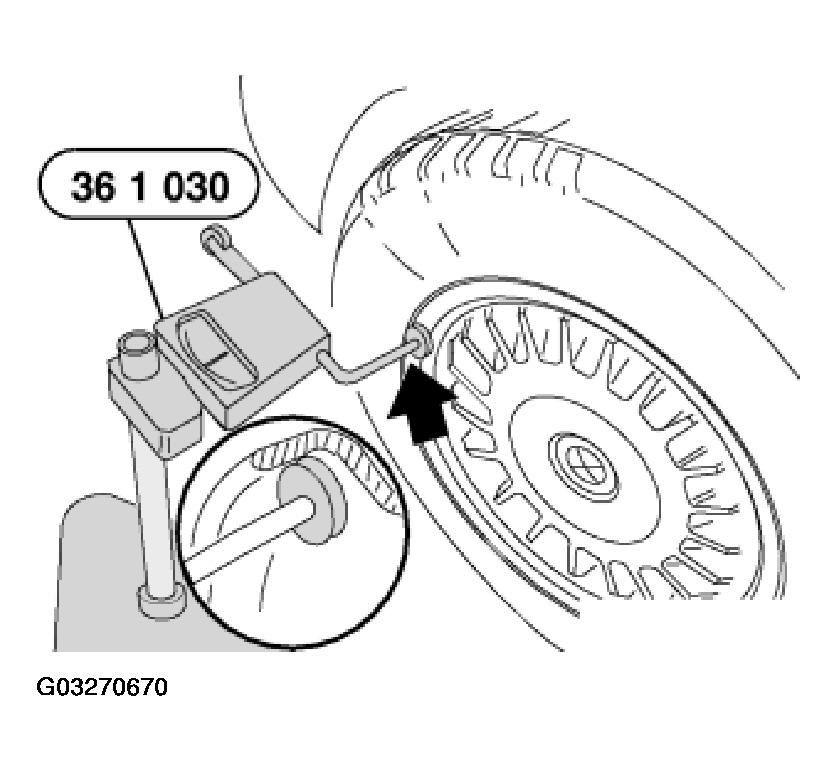

Fig 1: Checking Wheel For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. Refer to WHEEL AND TIRES - TECHNICAL DATA- 545I (4.4L) E60 .

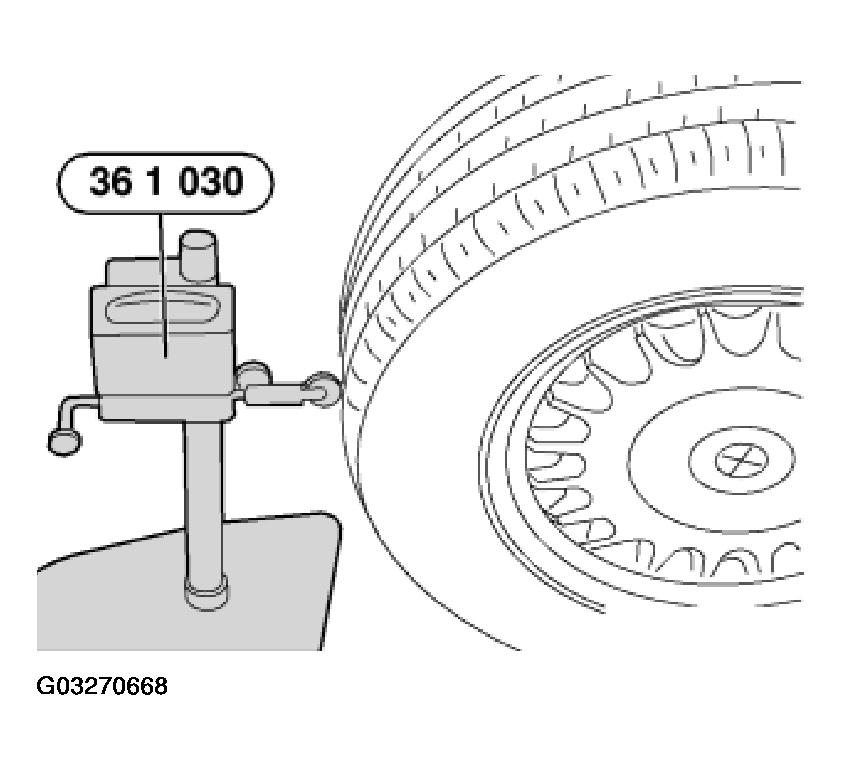

Fig 2: Checking Wheel For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA- 545I (4.4L) E60 .

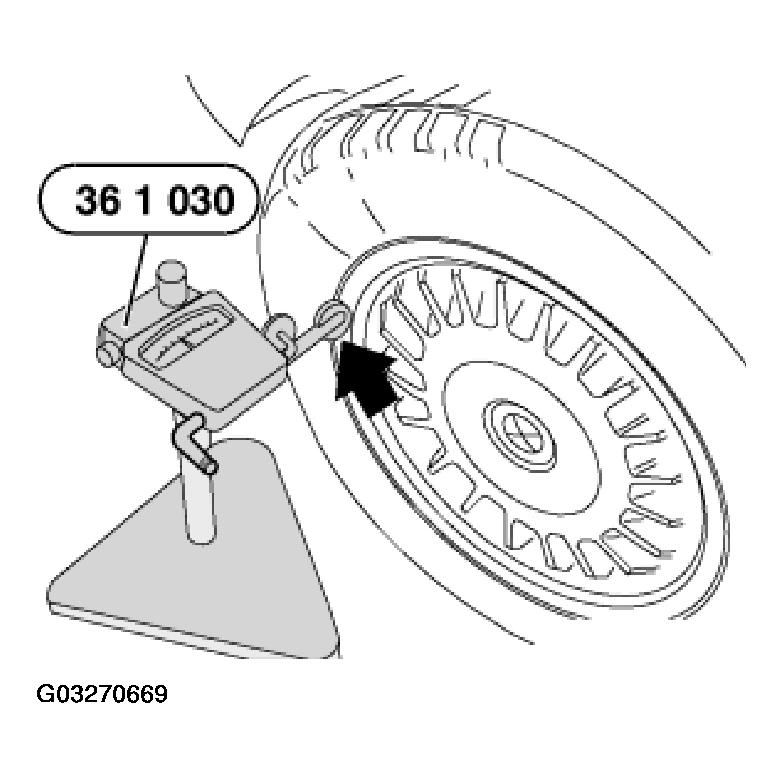

Fig 3: Checking Lateral Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA- 545I (4.4L) E60 .

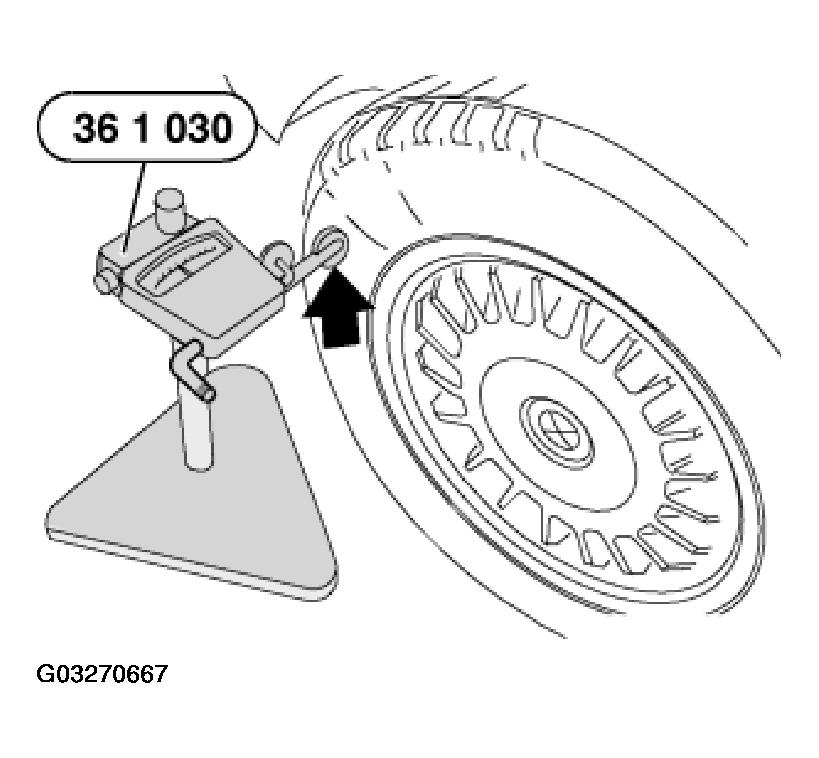

Fig 4: Checking Radial Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.
