34 21 200 Removing and installing or replacing brake linings on both rear disc brakes

WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see BRAKES - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

34 1 050
34 1 080
34 1 280

Necessary Preliminary Tasks:

Remove wheels. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Observe safety instructions on raising the vehicle. Refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

If necessary, when replacing linings, reset CBS display in accordance with factory specification.

NOTE: After completing work:

Fully depress brake pedal several times so that brake linings contact brake discs.
When installing new brake linings at front and rear axles, brake fluid level must be brought up to "MAX" marking.

IMPORTANT: On the E60 M5 and E63 M6 the fault memory entry "Mastervac vacuum pressure sensor" may be stored after the brake linings have been replaced. The fault memory entry must be deleted. The vacuum pressure sensor only has to be replaced if the fault is entered repeatedly.

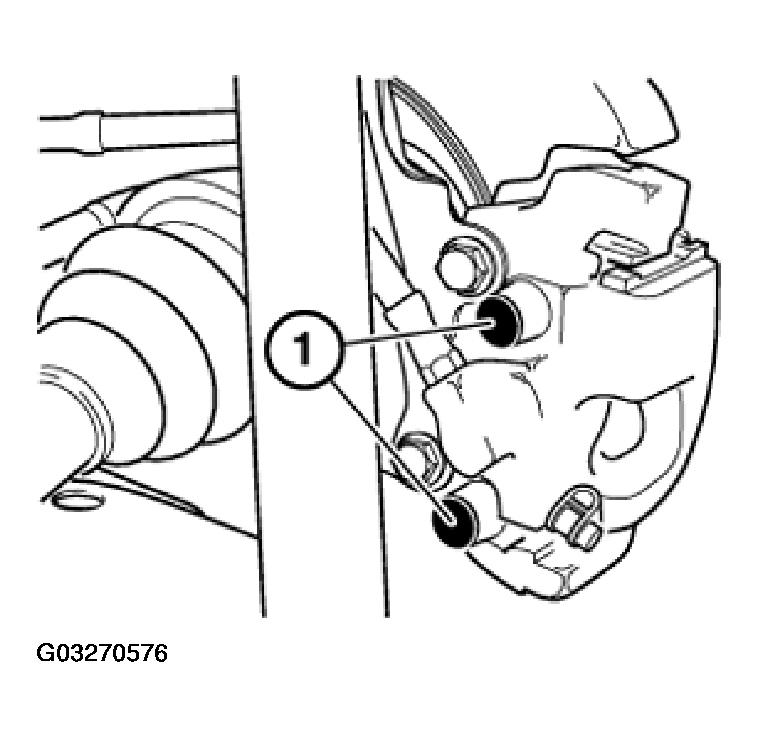

Remove plastic plugs (1).

Right side:

Disconnect plug connection for brake lining wear sensor.

If necessary, replace brake lining wear sensor.

Fig 1: Identifying Plastic Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

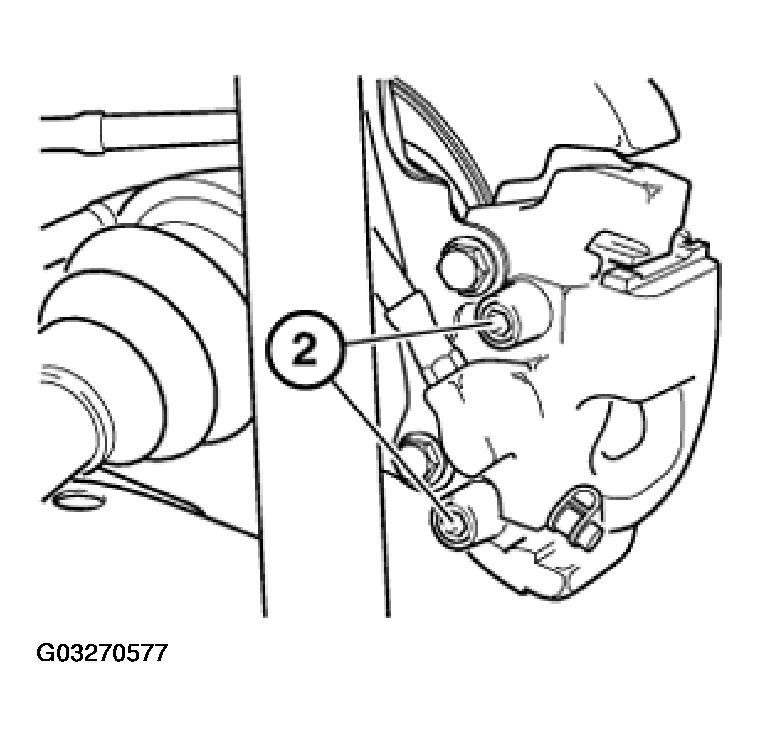

Release guide screws (2) with special tool 34 1 080.

Installation:

Only clean guide screws; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Tightening torque, refer to 34 21 5AZ in BRAKES - TIGHTENING TORQUES - E60 .

Fig 2: Locating Guide Screws

Courtesy of BMW OF NORTH AMERICA, INC.

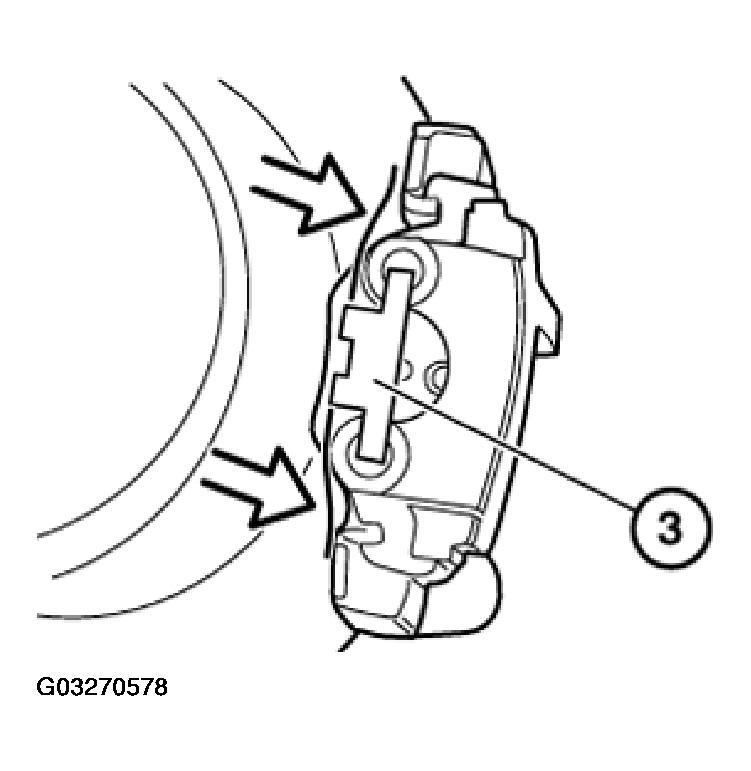

Lift out retaining spring (3).

Withdraw brake caliper backwards.

Fig 3: View Of Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

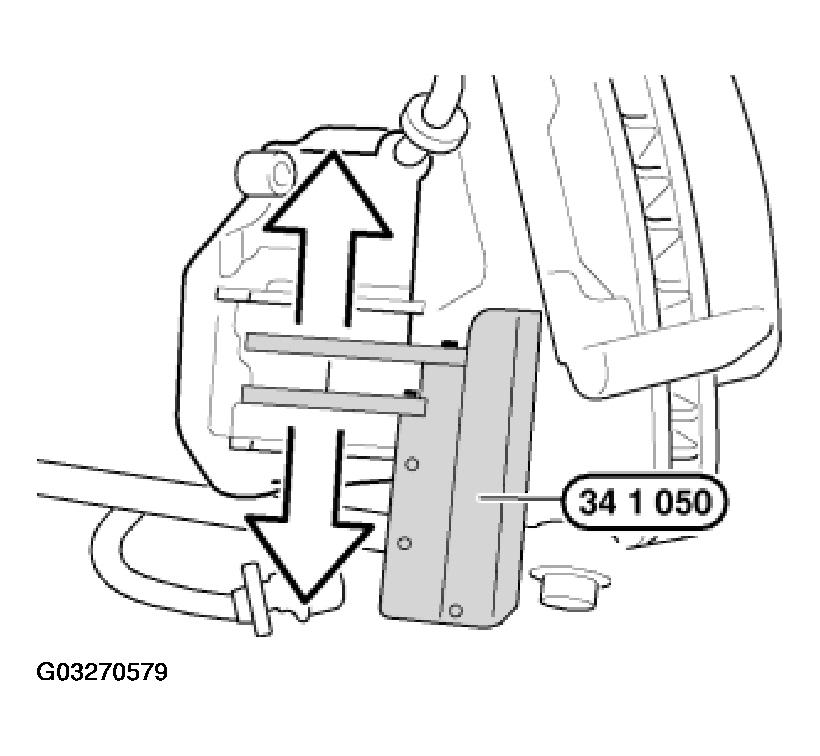

Turn piston fully back with special tool 34 1 050.

IMPORTANT: When forcing piston back:

Pay attention to brake fluid level in expansion tank; brake fluid that spills over will damage paintwork.

Fig 4: Aligning Piston Using Special Tool (34 1 050)
Courtesy of BMW OF NORTH AMERICA, INC.

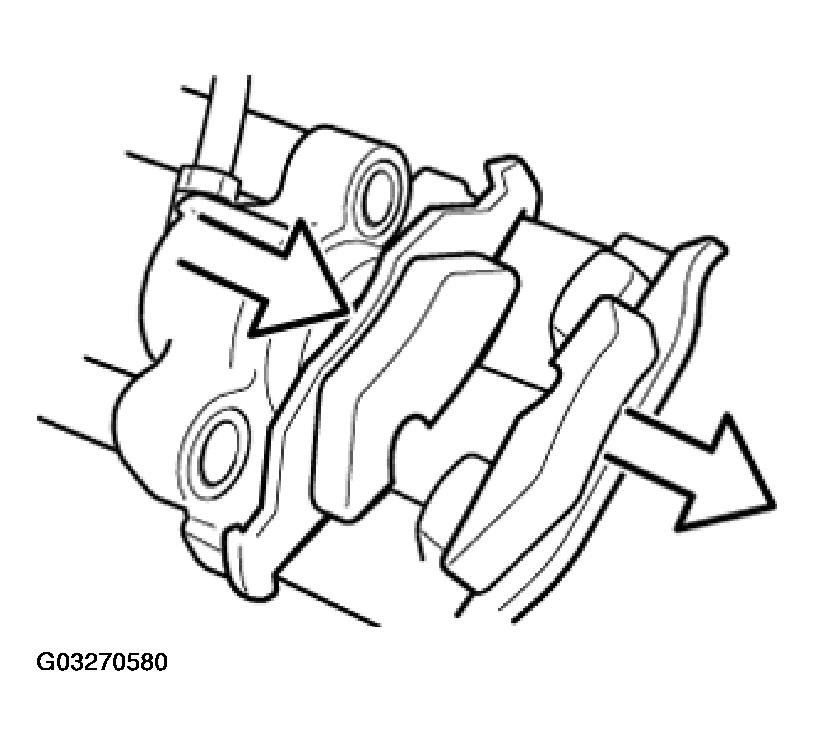

Remove outer brake lining.

Inner brake lining is located with its spring in the piston.

IMPORTANT: Mark any worn brake linings.

If the brake linings are worn on one side, they must not be mixed up!

New brake linings may only be installed if the brake disc thickness is greater than or equal to the minimum brake disc thickness (MIN TH).

Observe minimum thickness of brake linings. Refer to BRAKES - TECHNICAL DATA - E60 . Clean brake linings.

Do not apply grease to brake pad backplate.

Fig 5: Removing Outer Brake Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measurement result and lowest value with setpoint value. Refer to BRAKES - TECHNICAL DATA - E60 .

New brake linings may only be installed if the brake disc thickness is greater than or equal to the minimum brake disc thickness (MIN TH). Refer to BRAKES - TECHNICAL DATA - E60 .

Fig 6: Measuring Brake Disc Thickness

Courtesy of BMW OF NORTH AMERICA, INC.

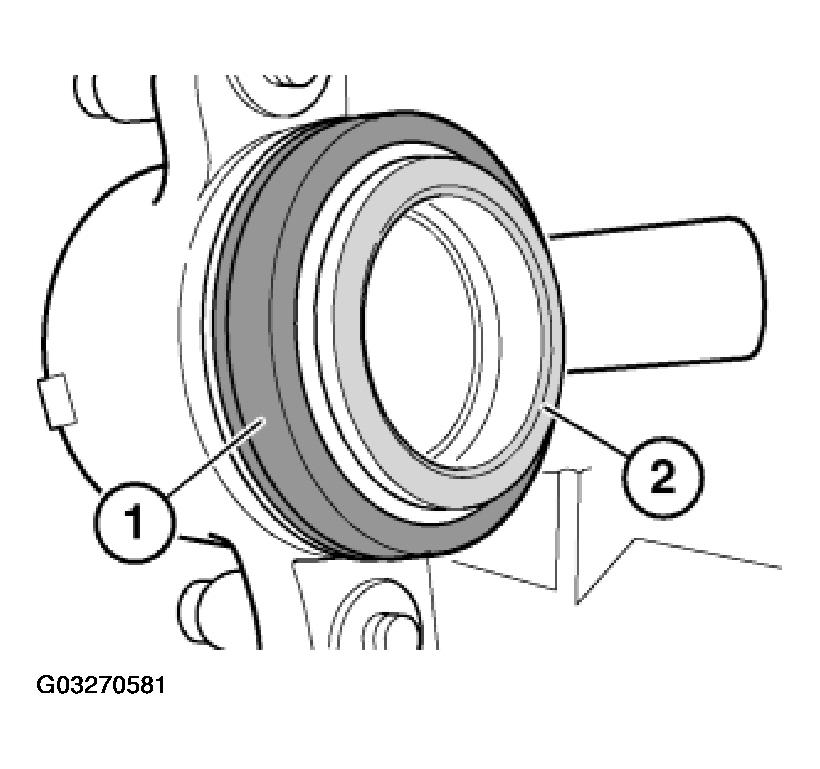

Check dust sleeve (1) for damage and replace if necessary.

Clean contact face (2) of brake piston and apply a thin coating of anti-squeak compound.

IMPORTANT: Dust sleeve must not come into contact with anti-squeak compound as this may cause the dust sleeve to swell.

Fig 7: View Of Dust Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

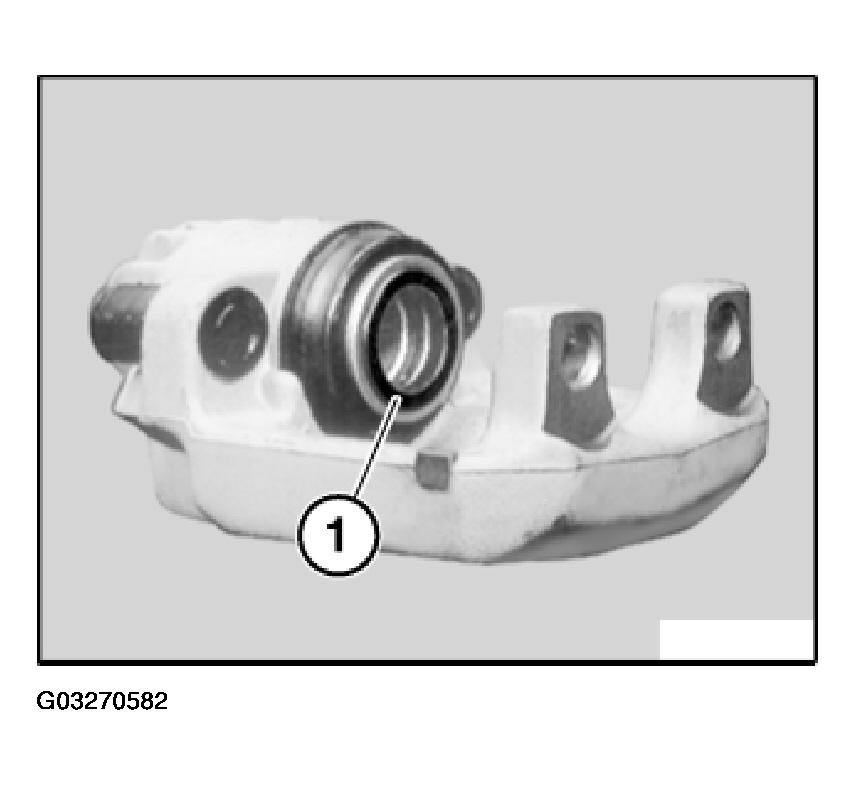

IMPORTANT: In E39/Touring models, make sure the insulating ring (1) is installed on the brake piston.

Fig 8: Locating Insulating Ring On Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

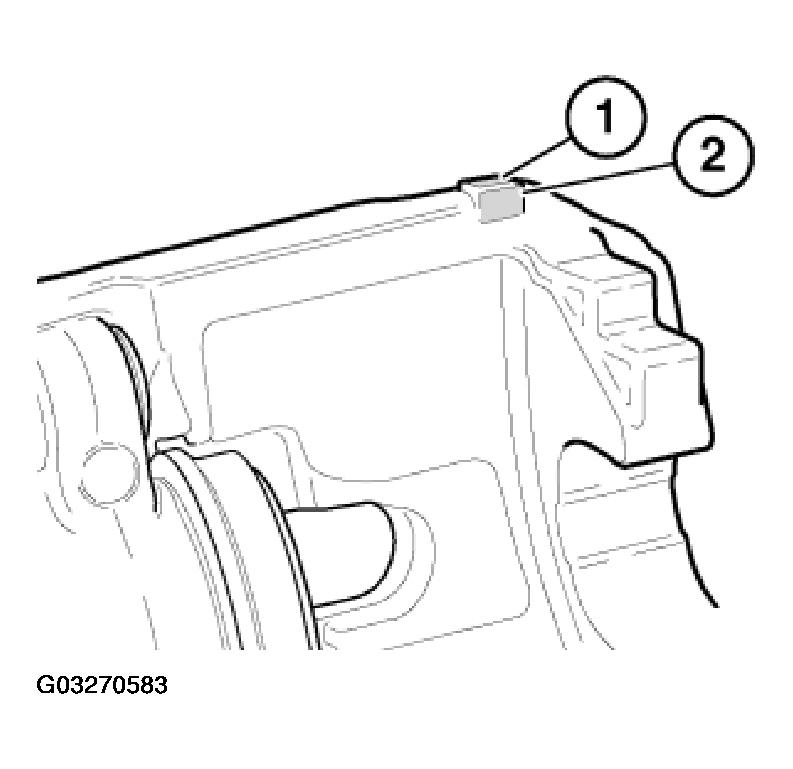

Clean mounting faces (1) and (2) of brake lining hammer heads/brake caliper housing and coat with anti-squeak compound.

Fig 9: Identifying Mounting Faces Of Brake Lining Hammer Heads

Courtesy of BMW OF NORTH AMERICA, INC.

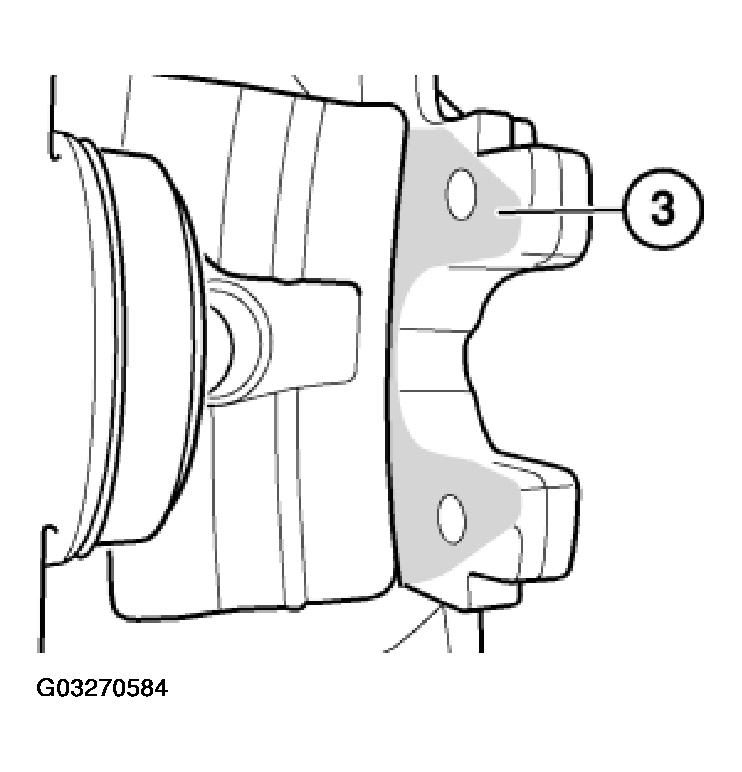

Clean contact face (3) of brake caliper and apply a thin coating of anti-squeak compound.

Fig 10: Locating Contact Face Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

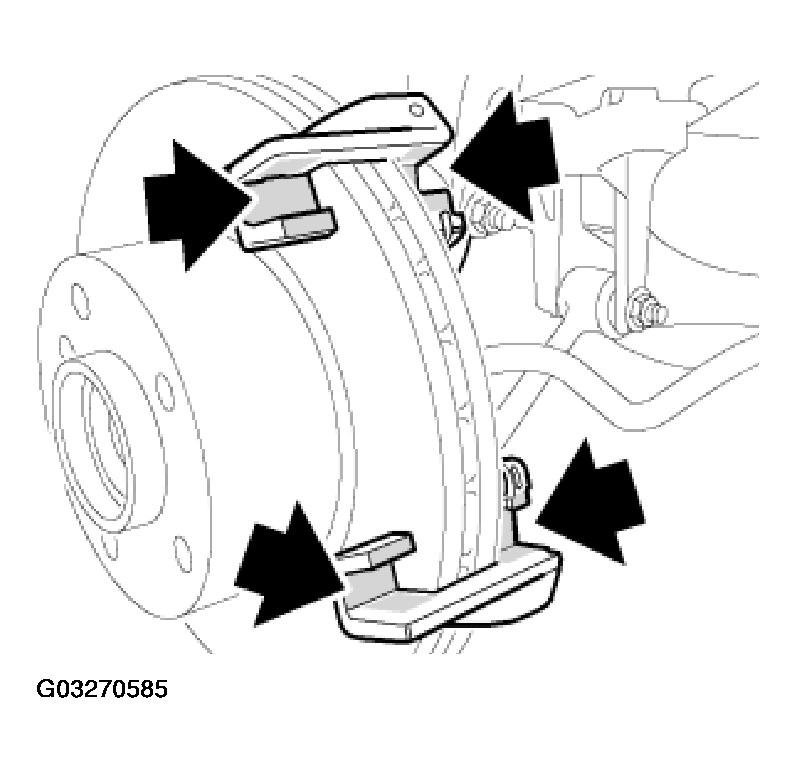

Clean brake caliper mounting bracket at hammer head guides and apply a thin coating of anti-squeak compound.

Fig 11: View Of Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
