34 41 120 Removing and installing / replacing both handbrake Bowden cables

Special Tools Required:

• 32 1 030

Necessary Preliminary Tasks:

• Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
• Remove rear brake discs. Refer to 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS .
• Remove exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62) .
• Remove heat shield.

After completing tasks, adjust handbrake. Refer to 34 10 014 ADJUSTING HANDBRAKE .

Lock adjuster unit (ASZE).

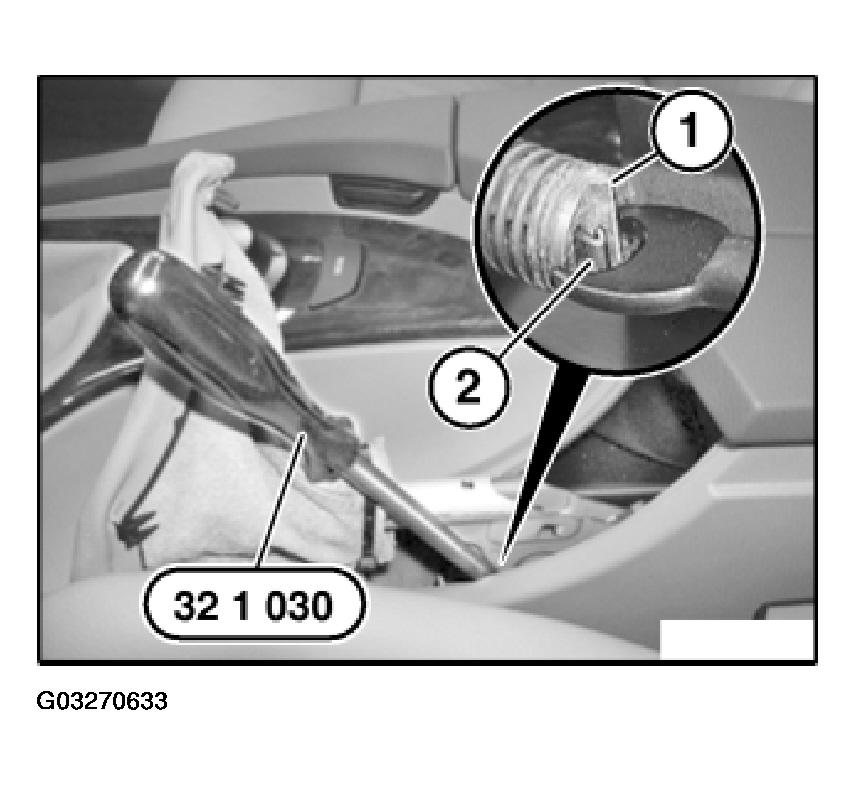

Using special tool 32 1 030, press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Locating Stop Of Adjusting Spring

Courtesy of BMW OF NORTH AMERICA, INC.

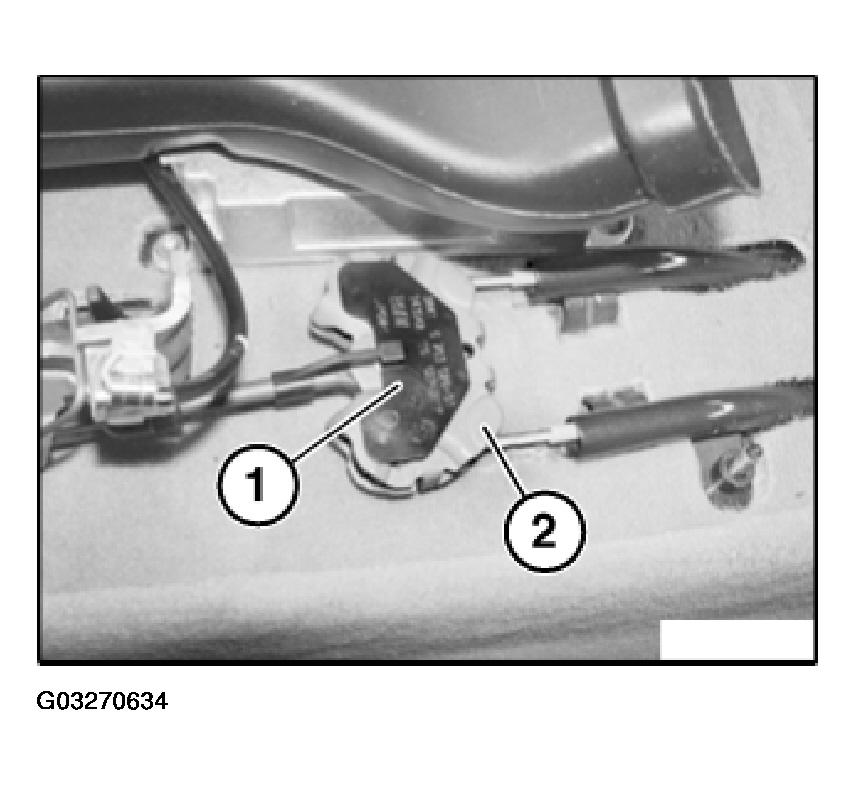

Unclip mounting clip (1) upwards out of balance arm (2).

Fig 2: View Of Mounting Clip Of Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

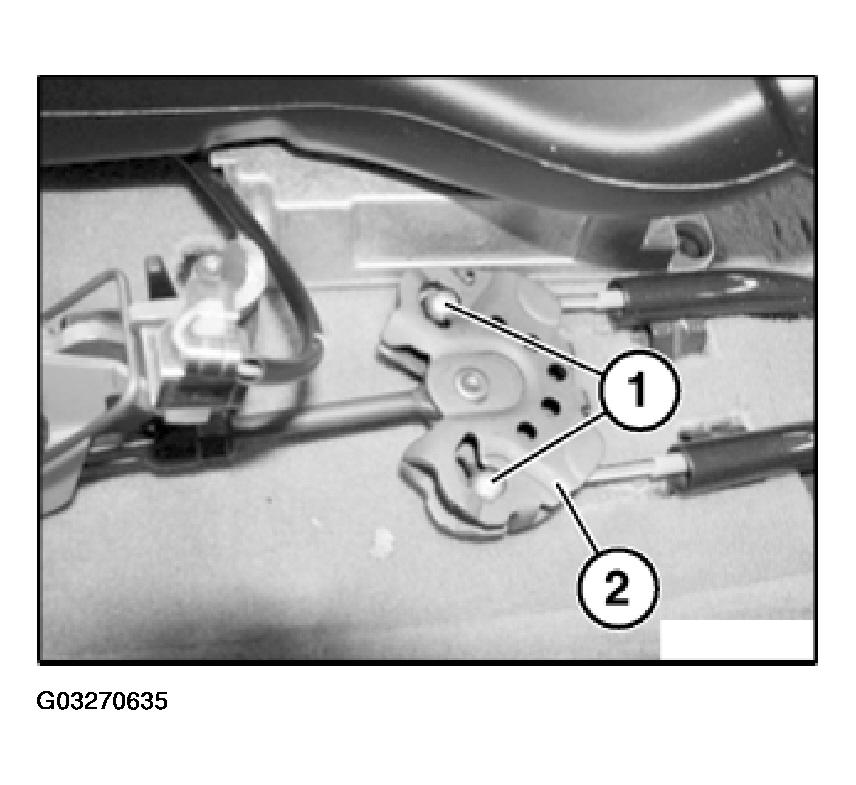

Guide handbrake Bowden cables (1) with a screwdriver inwards and pull out of balance bar (2).

Fig 3: Identifying Bowden Cables In Balance Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect handbrake Bowden cables at expander locks.

Release screw (1) and remove bracket.

Installation:

Tightening torque, refer to 34 41 5AZ in BRAKES - TIGHTENING TORQUES - E60 .

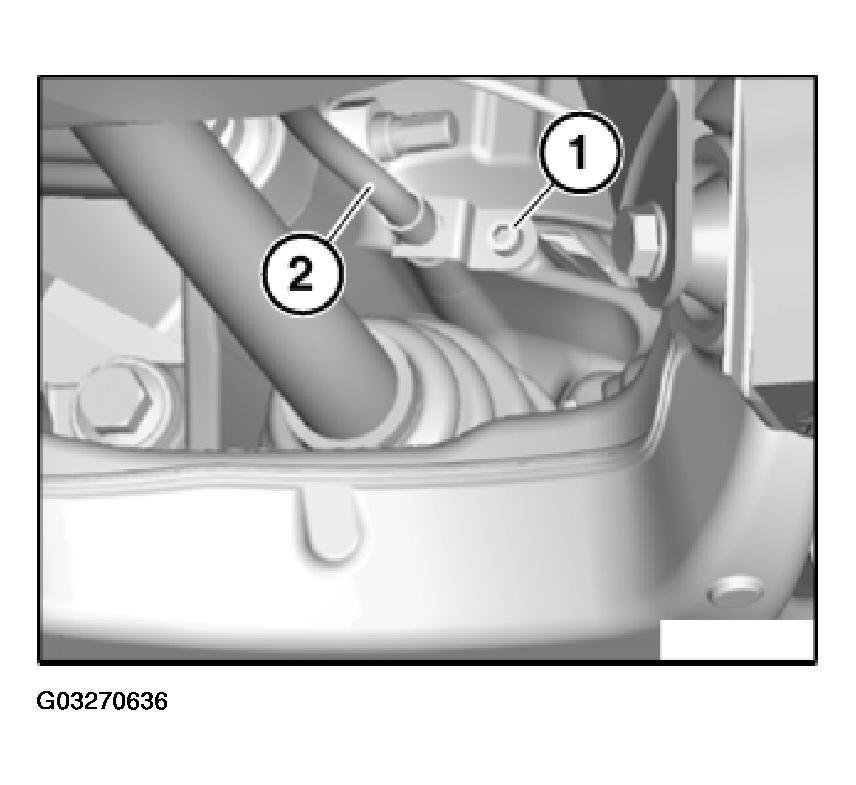

Pull handbrake Bowden cables (2) out of wheel carrier.

Fig 4: Disconnecting Handbrake Bowden Cables From Expander Locks

Courtesy of BMW OF NORTH AMERICA, INC.

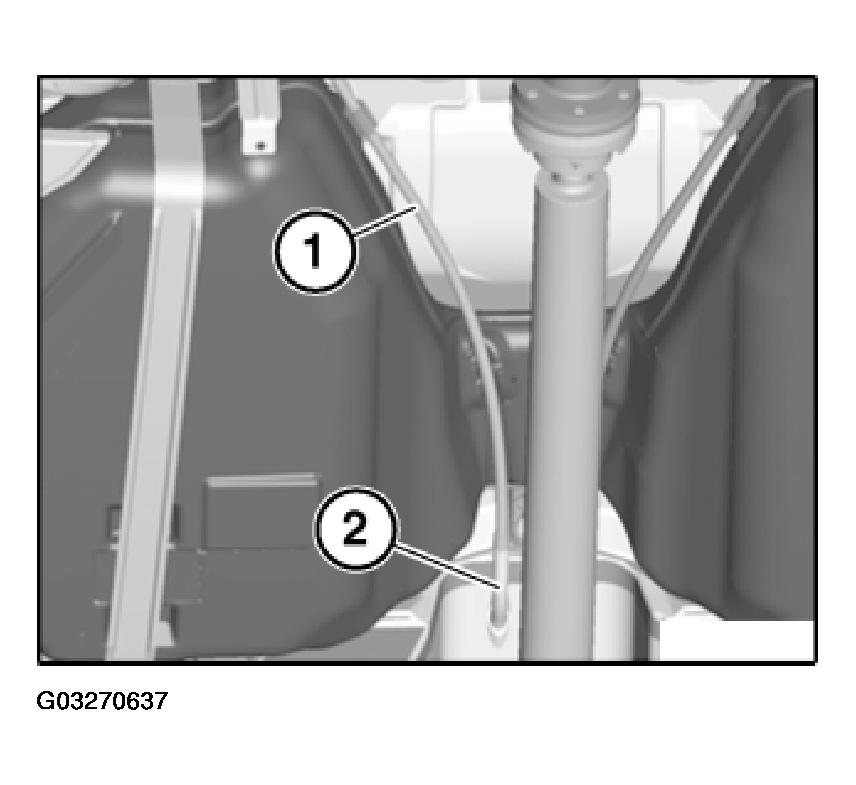

Disconnect handbrake Bowden cables (1) out of mountings.

Pull handbrake Bowden cables (1) out of guide (2) and remove.

Fig 5: Locating Handbrake Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.
