34 11 250 Removing and installing / replacing a brake carrier / brake guard plate at front
WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front brake discs. Refer to 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS .

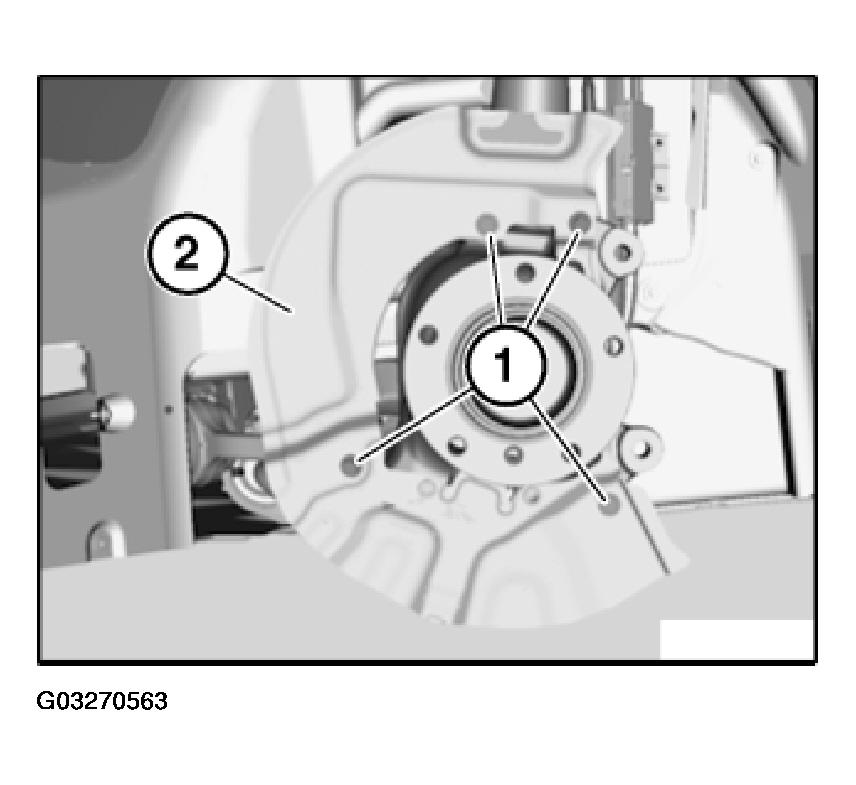

Release screws (1) and remove brake guard plate (2).
Installation:
Tightening torque, refer to 34 11 5AZ in BRAKES - TIGHTENING TORQUES - E60 .
