Preparation of new part

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1).

Remove sill section (2).

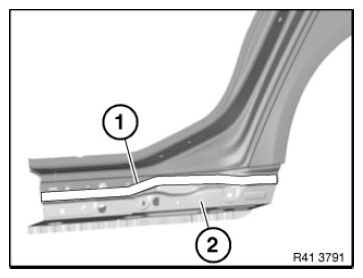

Fig 1: Identifying Welded Connection Area And Sill Section
G08476464Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with vehicle and cut.

Do not grind/sand new part in area of bonding surfaces.

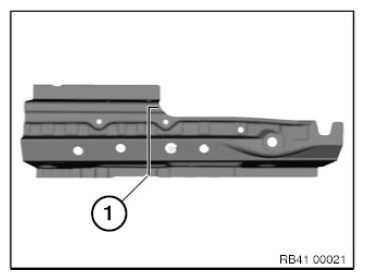

Fig 2: Identifying Severance Cut Mark
G08476465Courtesy of BMW OF NORTH AMERICA, INC.
