Removing roof outer skin

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

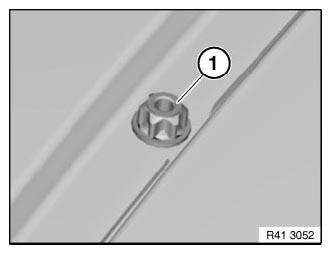

Release 4 screws (1) in roof channel.

Fig 1: Identifying Roof Channel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Interior, area of C-pillar:

Operation is described on the left side. Right side identical.

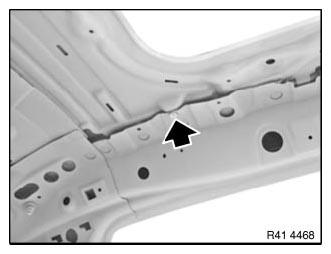

Release rivet connection (arrow).

Fig 2: Locating Rivet Connection

Courtesy of BMW OF NORTH AMERICA, INC.

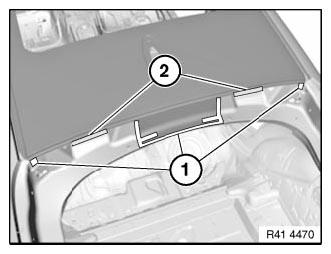

Fig 3: Identifying Bonding Surfaces And Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open spot-welded adhesive joints in areas (1).

Detach bonding surfaces (2) from vehicle interior.

Open welded connections in areas (1).

Open brazed connections in areas (2).

Take off roof outer skin.

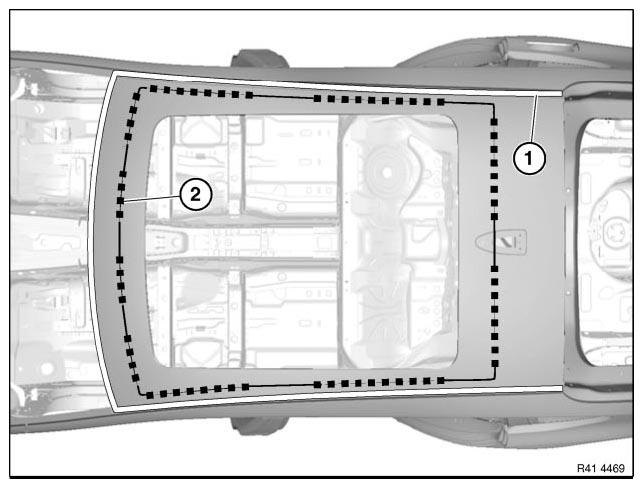

Fig 4: Identifying Roof Outer Skin Welded And Brazed Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.
