Removing luggage compartment floor on left

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

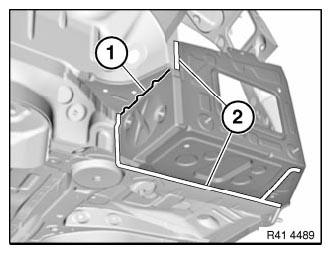

Graphic shows side wall partially removed for purposes of clarity.

Mark severance cut (1) at component edge and cut.

Open welded connections in area (2).

Fig 1: Identifying Severance Cut Mark At Component Edge And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

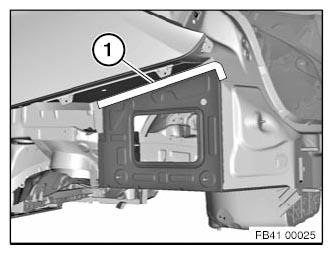

Open welded connections in area (1).

Fig 2: Identifying Luggage Compartment Floor Welded Connection Areas (Left Section)

Courtesy of BMW OF NORTH AMERICA, INC.

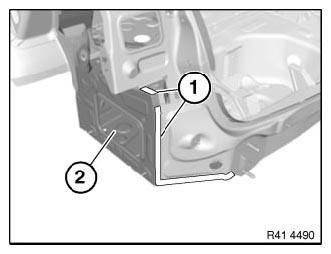

Open welded connections in areas (1).

Remove luggage compartment floor (2).

Fig 3: Identifying Luggage Compartment Floor And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.
