WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Mark severance cut according to vehicle + 10 mm additional material and cut (1).
Open welded connections in area (2).
Remove metal section (3).
NOTE:
Weld new part in area (4) overlapping.

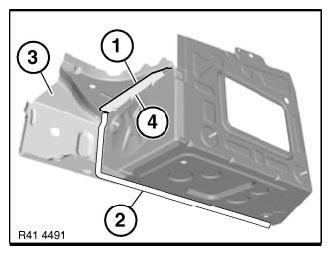

Fig 1: Identifying Metal Section, Severance Cut And Welded Areas
