Removing cross-member

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

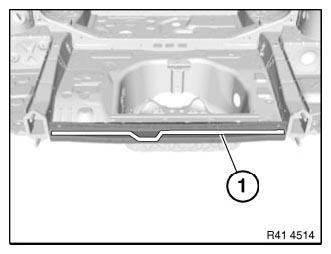

Open welded connections in area (1).

Fig 1: Identifying Cross-Member Welded Connection Areas
G08476248Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

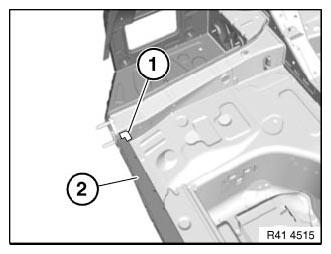

Open welded connections in the area (1) and remove cross member (2).

Fig 2: Identifying Cross-Member And Welded Connection Areas
G08476249Courtesy of BMW OF NORTH AMERICA, INC.
