Luggage compartment floor and side member reinforcements

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new parts and rivet with blind rivets.

Weld new parts in areas (1).

IMPORTANT: Risk of damage!
Avoid applying excessive heat to the neighboring adhesive areas!

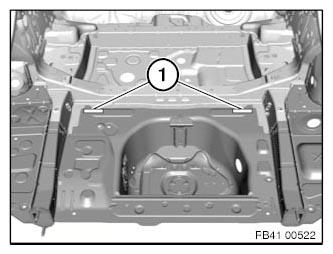

Fig 1: Identifying Luggage Compartment Floor Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in areas (1), install 2 EMC SCREWS .

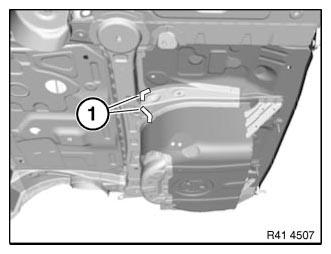

Fig 2: Identifying Adhesive Applying Areas On Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.
