51 24 300 Removing and installing or replacing (top) left or right gas pressurized prop for rear lid
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
Support rear lid in fully opened position with suitable apparatus.
Support rear lid in fully opened position with suitable apparatus.

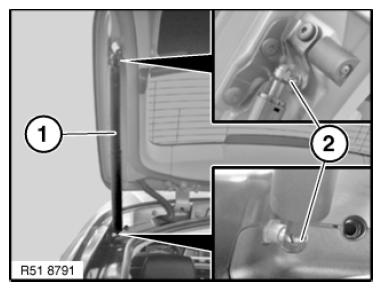

REMOVE ball sockets (2) from ball pins.
Detach gas pressurized prop (1).
