51 49 027 Removing and installing/replacing all trim for rear lid (central trim)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM PANEL FOR REAR WINDOW FRAME ON LEFT AND RIGHT .
Remove TRIM PANEL FOR REAR LID, SIDE LEFT AND RIGHT .
Remove REAR LID STORAGE SHELF part way.

Release screws (3) and clips (2) and remove trim panel (1).

Tightening torque: 51 49 5AZ

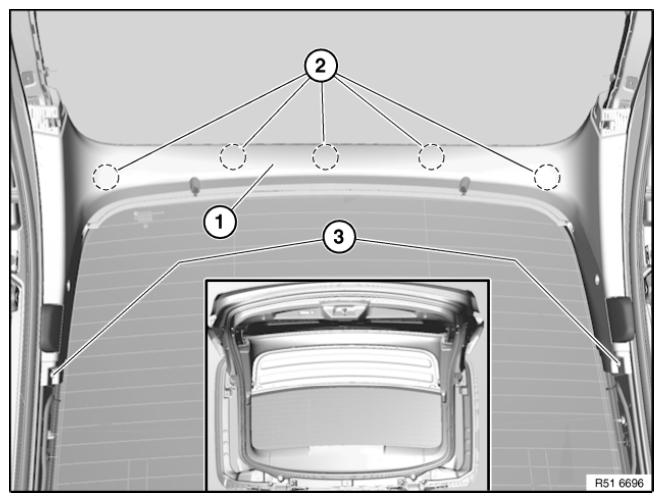

Fig 1: Identifying Trim Panel, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (2) on trim panel (1) must not be damaged.

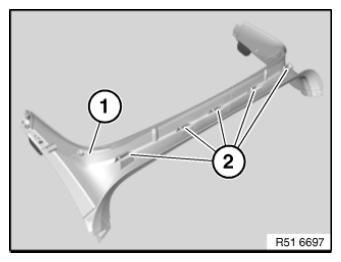

Fig 2: Identifying Trim Panel With Holders

Courtesy of BMW OF NORTH AMERICA, INC.
