51 49 020 Removing and installing/replacing trim for rear lid, top

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Release trim panel (1) at retainers (2).

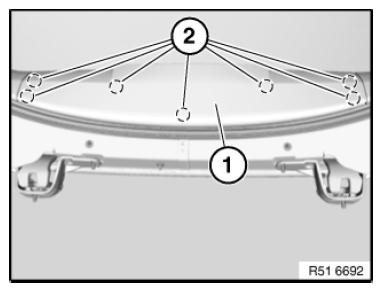

Fig 1: Identifying Trim Panel And Retainers
G08486217Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (2) on trim panel (1) must not be damaged.

If necessary, replace faulty retainers (3).

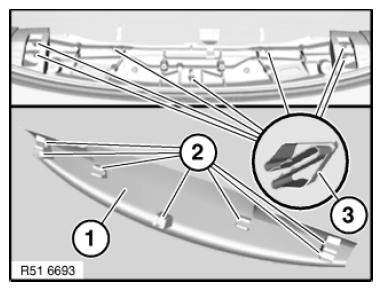

Fig 2: Identifying Trim Panel, Catch And Retainers
G08486218Courtesy of BMW OF NORTH AMERICA, INC.
