51 16 227 Removing and installing/replacing trim on center console at side left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Remove complete CENTRE CONSOLE .

Release screws (1) on back of trim (2).

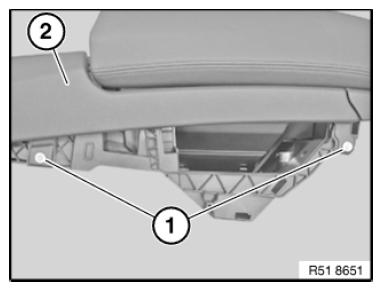

Fig 1: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on front of trim (2).

Remove trim (2).

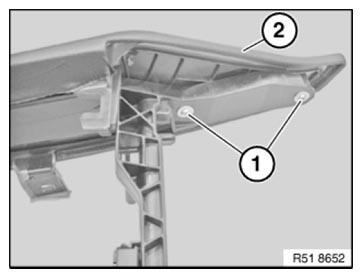

Fig 2: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
