51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Lever out cover (1) on joint.

Lever out trim (2) on counter support.

Installation note:

Cover (1) and trim (2) must not be damaged.

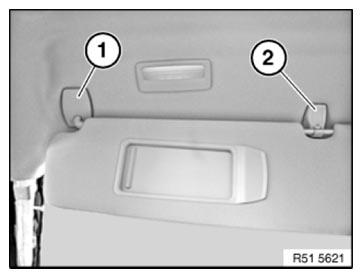

Fig 1: Identifying Cover On Joint And Trim On Counter Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 02AZ .

Disconnect plug connection for light and remove sun visor.

Installation note:

Perform function check on lighting.

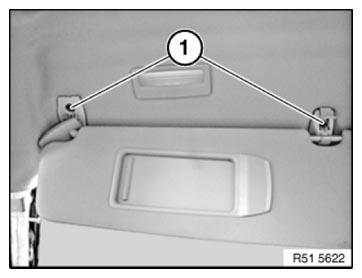

Fig 2: Identifying Sun Visor Screws

Courtesy of BMW OF NORTH AMERICA, INC.
