51 16 063 Removing and installing/replacing interior rear-view mirror (with mirror arm end caps)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 °C.

If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror foot and rear-view mirror (e.g. car left to stand indoors or in the shade for at least 30 minutes).

IMPORTANT: To avoid breaking windscreen:

Snap out (press) rear-view mirror only in direction of travel towards windscreen.

Do not under any circumstances twist the mirror foot when removing.

Twisting the mirror off the mirror mount will damage the rear catch.

If the rear catch is damaged, the mirror will be loose when installed and must be replaced.

NOTE: Do not exert any pressure on mirror foot when removing end caps (1).

Press end caps (1) towards mirror housing (2); this releases clip connection of both caps (1).

In order not to create any tension at the mirror foot, simultaneously apply counterpressure to the mirror housing when removing the end caps.

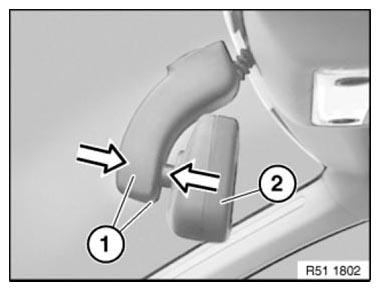

Fig 1: Pressing End Caps
G06885451Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

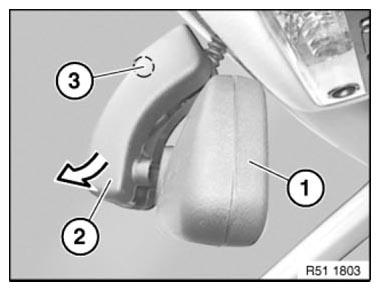

Fig 2: Removing Left End Cap
G06885452Courtesy of BMW OF NORTH AMERICA, INC.

Twist mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

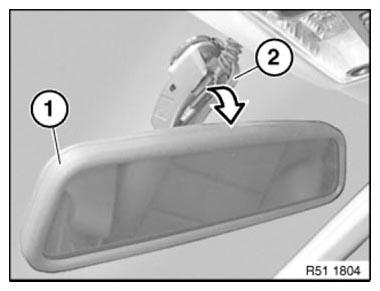

Fig 3: Removing Right End Cap
G06885453Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

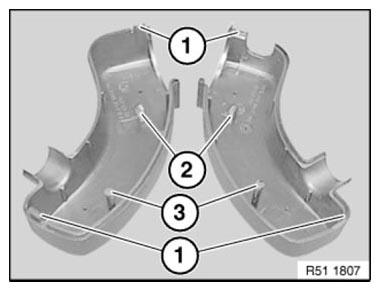

Fig 4: Identifying Clips, Retaining Hooks And End Caps
G06885454Courtesy of BMW OF NORTH AMERICA, INC.

Version with cable (X):

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection
G06885455Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of damage!

Do not pull off rear-view mirror (1) from windscreen against direction of travel and or snap out by turning.

Snap out interior mirror (1) from mirror mount (2) towards front with increasing pressure (not abruptly) and remove.

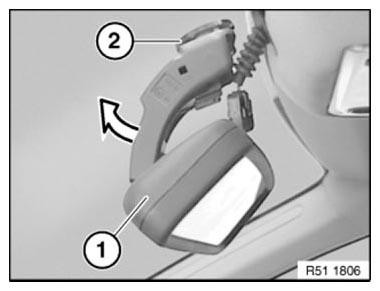

Fig 6: Removing Interior Mirror From Mirror Mount
G06885456Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Twist mirror foot by approx. 45° and fit to mirror mount.
  2. Turn mirror foot until it engages on mirror base plate.

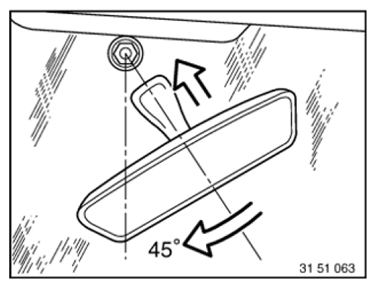

Fig 7: Turning Mirror Foot
G06885457Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Initialize all transmitters (ignition keys), refer to Owner's Handbook.
