51 45 184 Removing and installing (replacing) trim panel for pedal mechanism (ECE only)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

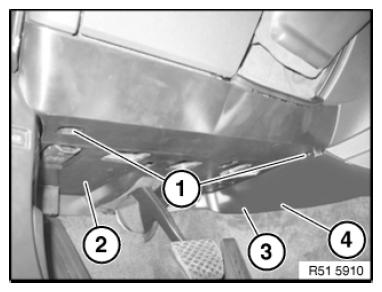

Release screws (1).
Unscrew screw (3) and remove carpet trim (4) by pulling forward.
Unclip panel for pedal assembly (2) and lower slightly.
Disconnect plug connections at the back.
Remove panel for pedal assembly (2)
Replacement
- Remove FOOTWELL LIGHT .
- Remove SPEAKER FOR HANDS-FREE SYSTEM .
