51 36 030 Removing and installing/replacing trim on left or right C pillar (on outside at rear side window)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Trim (1) is secured to side window (3) with double-sided adhesive tape.

Detach trim (1) with special tool 00 9 322 from side window (2).

Completely remove adhesive residue.

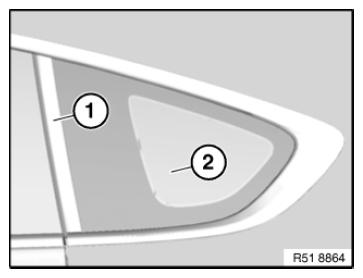

Fig 1: Identifying Trim And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe NOTES for securing components with adhesive tape.

Ensure correct gap dimension (A) between trim (1) and door window glass (3).

A = 4.7± 0.8 mm

Affix trim (1) according to dimension (A) to side window (2)

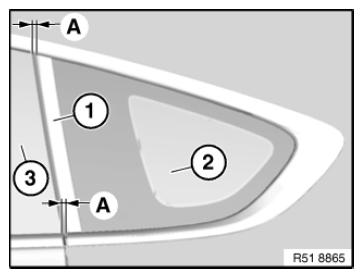

Fig 2: Identifying Gap Dimension Between Trim And Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
