Positioning aid "A1" for front door, left ("B1" right)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

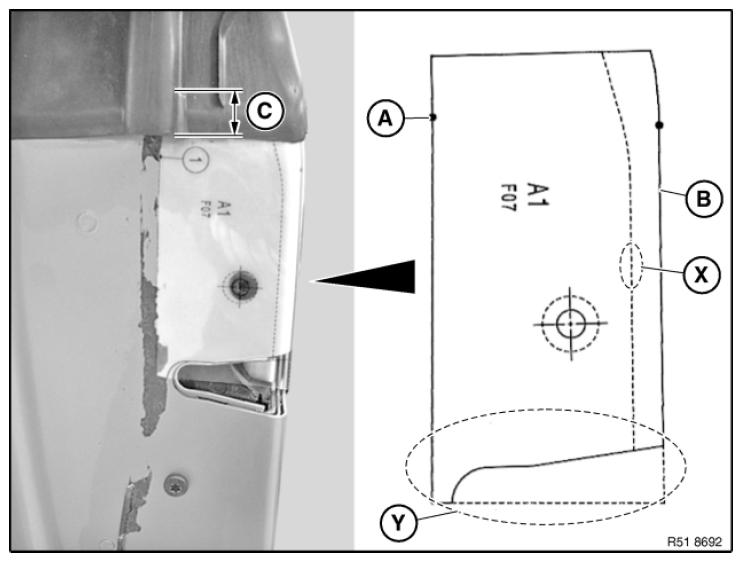

Fig 1: Identifying Positioning Aid "A1" For Front Door (Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach prestamped positioning aid from backing.

Positioning aid "A1" front door, left (door lock, top)
Positioning aid "B1" front door, right (door lock, top)

Align positioning aid with printed help markings (X, Y), bores and contact edge (B) to front door and press.

Seal must be pushed into the window cavity cover strip by dimension (C).

C = 10 mm

Seal must rest on positioning edge (A) during sticking.

X Start of bend radius

Y Bore for door lock
