51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) downwards in direction of arrow from front door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

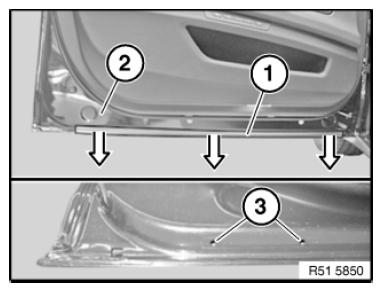

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note installation direction of cover (1).
Curve of sealing lip (2) must point away from door frame (3).

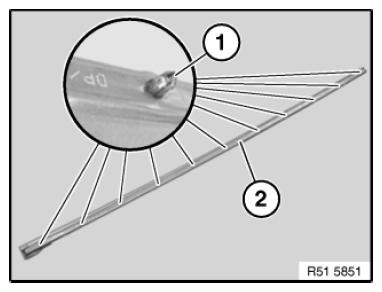

Fig 2: Identifying Cover, Sealing Lip And Door Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

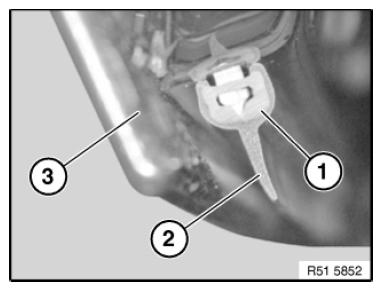

Fig 3: Identifying Clips Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
