51 21 330 Removing and installing/renewing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT DOOR TRIM .

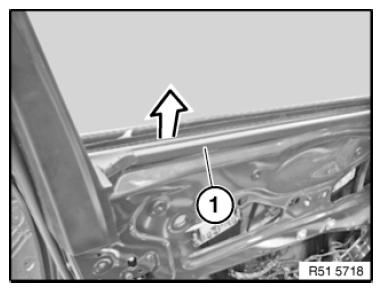

Pull off window cavity cover strip (1) towards top.

Fig 1: Pulling Off Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

Fig 2: Identifying Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
