51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 324

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

Attach fabric adhesive tape (2) beneath window cavity cover strip (1).

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Lever out window cavity cover strip (1) with special tool 00 9 324 (startng at B-pillar).

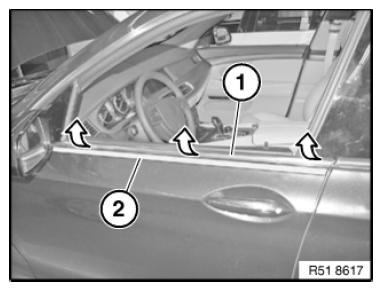

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In area (A) of cavity strip (1), cover door panel (2) with adhesive tape (risk of damage).

Insert cavity strip (1) in guide (3) and press on.

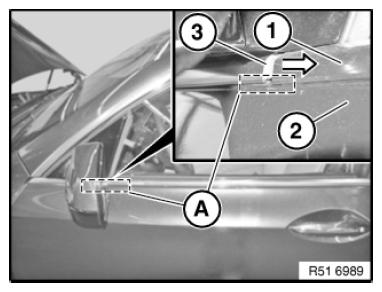

Fig 2: Inserting Cavity Strip In Guide

Courtesy of BMW OF NORTH AMERICA, INC.
