51 21 280 Removing and installing or replacing door brake on left or right front door
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove ACOUSTIC INSULATION .

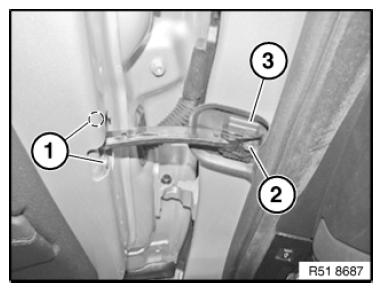

Release screw (1).
Tightening torque 51 21 5AZ .
Release screw (2).
Tightening torque 51 21 3AZ .
Slide out door stop.
Installation:
Rubber seal (3) must be laid out flat.
