51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove front DOOR TRIM PANEL .

NOTE: Graphic is similar.

Lever out lock (2)

Pull off Bowden cable housing (3) towards rear/top - the Bowden cable feeds out of its own accord in the process.

Fig 1: Pressing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To install the Bowden cable, press door opener (1) against direction of arrow towards door trim panel.

Protect door opener (1) against damage.

Fig 2: Identifying Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Secure door opener (3) against falling out.

Unlock hinge bolt (1) with Torx T-20 (2) in direction of arrow and remove.

Installation note:

Check hinge bolt (1) for damage and replace if necessary.

Hinge bolt (1) must snap clearly into place.

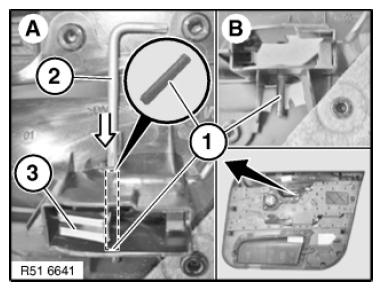

Fig 3: Removing Hinge Bolt With Torx T-20

Courtesy of BMW OF NORTH AMERICA, INC.
