51 31 030 Removing and installing/replacing water strip on left and right (side cover)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove LOWER COWL PANEL FROM WINDSCREEN .

IMPORTANT: Rubber frame (1) features an aluminum strip (6).
Carefully unwind rubber frame (1) (windscreen breakage).

NOTE: Tear-off lip (4) may be stuck to adhesive (3).

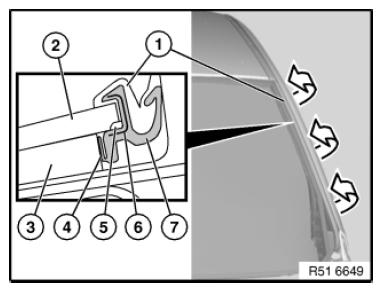

Fig 1: Unwinding Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

When rubber frame (1) is removed, tear-off lip (4) can tear off and remain in vehicle.

2 Windscreen

5 Pinched butyl

7 Sealing lip installed

When replacing without removing windscreen:

If adhesive leaks over tear-off lip (4), this area must be cut out partially.

Detach tear-off lip (4) from rubber frame (1).

To facilitate installation, coat rubber frame (1) and body aperture with water.

Replacement with removed/new windscreen

Fit rubber frame (1) with tear-off lip (4).

Installation note:

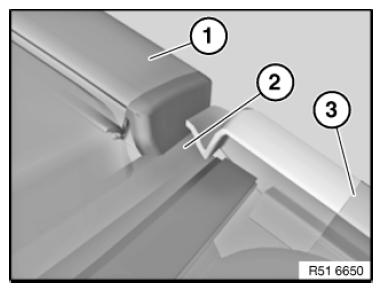

Make sure roof strip (1), upper windscreen cover (2) and rubber frame on left and right (3) are correctly positioned in relation to each other (wind noises).

Fig 2: Identifying Roof Strip And Upper Windscreen Cover

Courtesy of BMW OF NORTH AMERICA, INC.
