51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FLAP IN LUGGAGE COMPARTMENT ON LEFT .
Remove CAPPING PANEL .
Remove TRIM ON C-PILLAR AT BOTTOM .

Release expander rivets (1).

Unlock retaining tab (3) from lock cover through opening as shown and twist to pull out lock cover in an outward direction.

Lever off cover at lashing eye (5). Release screws underneath. Lay lashing eye (5) to one side.

Use multifunction hook (2) to pull up and remove wheel arch panel (4).

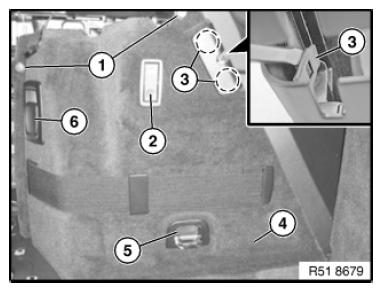

Fig 1: Identifying Rivets, Wheel Arch Panel, Hook, Lashing Eye And Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out release lever (6) from cargo cover and remove wheel arch panel (4).

Replacement

Modify multifunction hook.

Modify rubber pull.
