51 47 065 Removing and installing/replacing rocker panel trim on front left or right entrance (outer)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lift cover panel (2) up and out at clips (1) using special tool 00 9 317 .

Remove cover (2).

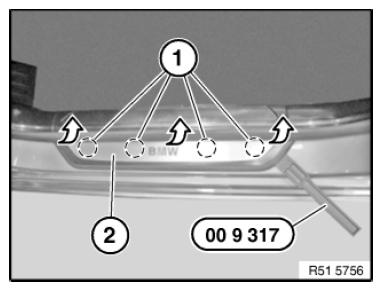

Fig 1: Lifting Cover Panel Up Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, remove clips (1) from entrance with a suitable tool.

Replace faulty clamps (1).

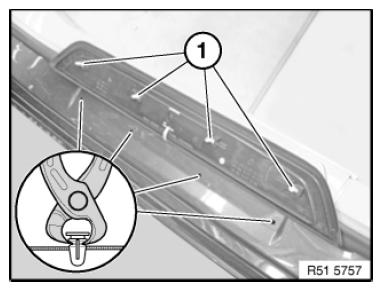

Fig 2: Removing Clips Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.
